Is Apple’s Cloud Key Vault a crypto backdoor?

TL;DR: No, it isn’t. If that’s all you wanted to know, you can stop reading.

Still, as you can see there’s been some talk on Twitter about the subject, and I’m afraid it could lead to a misunderstanding. That would be too bad, since Apple’s new technology is kind of a neat experiment.

So while I promise that this blog is not going to become all-Apple-all-the-time, I figured I’d take a minute to explain what I’m talking about. This post is loosely based on an explanation of Apple’s new escrow technology that Ivan Krstic gave at BlackHat. You should read the original for the fascinating details.

What is Cloud Key Vault (and what is iCloud Keychain)?

A few years ago Apple quietly introduced a new service called iCloud Keychain. This service is designed to allow you to back up your passwords and secret keys to the cloud. Now, if backing up your sensitive passwords gives you the willies, you aren’t crazy. Since these probably include things like bank and email passwords, you really want these to be kept extremely secure.

And — at least going by past experience — security is not where iCloud shines:

The problem here is that passwords need to be secured at a much higher assurance level than most types of data backup. But how can Apple ensure this? We can’t simply upload our secret passwords the way we upload photos of our kids. That would create a number of risks, including:

  1. The risk that someone will guess, reset or brute-force your iCloud password. Password resets are a particular problem. Unfortunately these seem necessary for normal iCloud usage, since people do forget their passwords. But that’s a huge risk when you’re talking about someone’s entire password collection.
  2. The risk that someone will break into Apple’s infrastructure. Even if Apple gets their front-end brute-forcing protections right (and removes password resets), the password vaults themselves are a huge target. You want to make sure that even someone who hacks Apple can’t get them out of the system.
  3. The risk that a government will compel Apple to produce data. Maybe you’re thinking of the U.S. government here. But that’s myopic: Apple stores iCloud data all over the world.

So clearly Apple needs a better way to protect these passwords. How do to it?

Why not just encrypt the passwords?

It is certainly possible for an Apple device to encrypt your password vault before sending it to iCloud. The problem here is that Apple doesn’t necessarily have a strong encryption key to do this with. Remember that the point of a backup is to survive the loss of your device, and thus we can’t assume the existence of a strong recovery key stored on your phone.

This leaves us with basically one option: a user password. This could be either the user’s iCloud password or their device passcode. Unfortunately for the typical user, these tend to be lousy. They may be strong enough to use as a login password — in a system that allows only a very limited number of login attempts. But the kinds of passwords typical users choose to enter on mobile devices are rarely strong enough to stand up to an offline dictionary attack, which is the real threat when using passwords as encryption keys.

(Even using a strong memory-hard password hash like scrypt — with crazy huge parameters — probably won’t save a user who chooses a crappy password. Blame phone manufacturers for making it painful to type in complicated passwords by forcing you to type them so often.)

So what’s Apple to do?

So Apple finds itself in a situation where they can’t trust the user to pick a strong password. They can’t trust their own infrastructure. And they can’t trust themselves. That’s a problem. Fundamentally, computer security requires some degree of trust — someone has to be reliable somewhere.

Apple’s solution is clever: they decided to make something more trustworthy than themselves. To create a new trust anchor, Apple purchased a bunch of fancy devices called Hardware Security Modules, or HSMs. These are sophisticated, tamper-resistant specialized computers that store and operate with cryptographic keys, while preventing even malicious users from extracting them. The high-end HSMs Apple uses also allow the owner to include custom programming.

Rather than trusting Apple, your phone encrypts its secrets under a hardcoded 2048-bit RSA public key that belongs to Apple’s HSM. It also encrypts a function of your device passcode, and sends the resulting encrypted blob to iCloud. Critically, only the HSM has a copy of the corresponding RSA decryption key, thus only the HSM can actually view any of this information. Apple’s network sees only an encrypted blob of data, which is essentially useless.

When a user wishes to recover their secrets, they authenticate themselves directly to the HSM. This is done using a user’s “iCloud Security Code” (iCSC), which is almost always your device passcode — something most people remember after typing it every day. This authentication is done using the Secure Remote Password protocol, ensuring that Apple (outside of the HSM) never sees any function of your password.

Now, I said that device passcodes are lousy secrets. That’s true when we’re talking about using them as encryption keys — since offline decryption attacks allow the attacker to make an unlimited number of attempts. However, with the assistance of an HSM, Apple can implement a common-sense countermeasure to such attacks: they limit you to a fixed number of login attempts. This is roughly the same protection that Apple implements on the devices themselves.

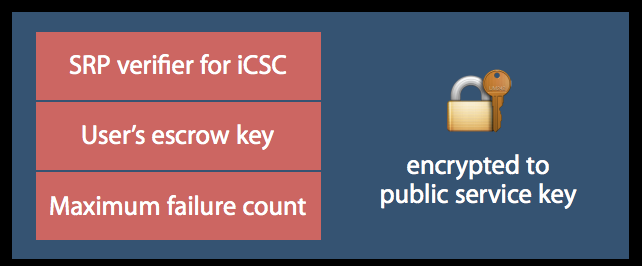

The encrypted contents of the data sent to the HSM (source).

The upshot of all these ideas is that — provided that the HSM works as designed, and that it can’t be reprogrammed — even Apple can’t access your stored data except by logging in with a correct passcode. And they only get a limited number of attempts to guess correctly, after which the account locks.

This rules out both malicious insiders and government access, with one big caveat.

What stops Apple from just reprogramming its HSM?

This is probably the biggest weakness of the system, and the part that’s driving the “backdoor’ concerns above. You see, the HSMs Apple uses are programmable. This means that — as long as Apple still has the code signing keys — the company can potentially update the custom code it includes onto the HSM to do all sort sorts of things.

These things might include: programming the HSM to output decrypted escrow keys. Or disabling the maximum login attempt counting mechanism. Or even inserting a program that runs a brute-force dictionary attack on the HSM itself. This would allow Apple to brute-force your passcode and/or recover your passwords.

Fortunately Apple has thought about this problem and taken steps to deal with it. Note that on HSMs like the one Apple is using, the code signing keys live on a special set of admin smartcards. To remove these keys as a concern, once Apple is done programming the HSM, they run these cards through a process that they call a “physical one-way hash function”.

If that sounds complicated, here’s Ivan’s slightly simpler explanation.

So, with the code signing keys destroyed, updating the HSM to allow nefarious actions should not be possible. Pretty much the only action Apple can take is to  wipe the HSM, which would destroy the HSM’s RSA secret keys and thus all of the encrypted records it’s responsible for. To make sure all admin cards are destroyed, the company has developed a complex ceremony for controlling the cards prior to their destruction. This mostly involves people making assertions that they haven’t made copies of the code signing key — which isn’t quite foolproof. But overall it’s pretty impressive.

The downside for Apple, of course, is that there had better not be a bug in any of their programming. Because right now there’s nothing they can do to fix it — except to wipe all of their HSMs and start over.

Couldn’t we use this idea to implement real crypto backdoors?

A key assertion I’ve heard is that if Apple can do this, then surely they can do something similar to escrow your keys for law enforcement. But looking at the system shows isn’t true at all.

To be sure, Apple’s reliance on a Hardware Security Module indicates a great deal of faith in a single hardware/software solution for storing many keys. Only time will tell if that faith is really justified. To be honest, I think it’s an overly-strong assumption. But iCloud Keychain is opt-in, so individuals can decide for themselves whether or not to take the risk. That wouldn’t be true of a mandatory law enforcement backdoor.

But the argument that Apple has enabled a law enforcement backdoor seems to miss what Apple has actually done. Instead of building a system that allows the company to recover your secret information, Apple has devoted enormous resources to locking themselves out. Only customers can access their own information. In other words, Apple has decided that the only way they can hold this information is if they don’t even trust themselves with it.

That’s radically different from what would be required to build a mandatory key escrow system for law enforcement. In fact, one of the big objections to such a backdoor — which my co-authors and I recently outlined in a report — is the danger that any of the numerous actors in such a system could misuse it. By eliminating themselves from the equation, Apple has effectively neutralized that concern.

If Apple can secure your passwords this way, then why don’t they do the same for your backed up photos, videos, and documents?

That’s a good question. Maybe you should ask them?

What is Differential Privacy?

Yesterday at the WWDC keynote, Apple announced a series of new security and privacy features, including one feature that’s drawn a bit of attention — and confusion. Specifically, Apple announced that they will be using a technique called “Differential Privacy” (henceforth: DP) to improve the privacy of their data collection practices.

The reaction to this by most people has been a big “???”, since few people have even heard of Differential Privacy, let alone understand what it means. Unfortunately Apple isn’t known for being terribly open when it comes to sharing the secret sauce that drives their platform, so we’ll just have to hope that at some point they decide to publish more. What we know so far comes from Apple’s iOS 10 Preview guide:

Starting with iOS 10, Apple is using Differential Privacy technology to help discover the usage patterns of a large number of users without compromising individual privacy. To obscure an individual’s identity, Differential Privacy adds mathematical noise to a small sample of the individual’s usage pattern. As more people share the same pattern, general patterns begin to emerge, which can inform and enhance the user experience. In iOS 10, this technology will help improve QuickType and emoji suggestions, Spotlight deep link suggestions and Lookup Hints in Notes.

To make a long story short, it sounds like Apple is going to be collecting a lot more data from your phone. They’re mainly doing this to make their services better, not to collect individual users’ usage habits. To guarantee this, Apple intends to apply sophisticated statistical techniques to ensure that this aggregate data — the statistical functions it computes over all your information — don’t leak your individual contributions. In principle this sounds pretty good. But of course, the devil is always in the details.

While we don’t have those details, this seems like a good time to at least talk a bit about what Differential Privacy is, how it can be achieved, and what it could mean for Apple — and for your iPhone.

The motivation

In the past several years, “average people” have gotten used to the idea that they’re sending a hell of a lot of personal information to the various services they use. Surveys also tell us they’re starting to feel uncomfortable about it.

This discomfort makes sense when you think about companies using our personal data to market (to) us. But sometimes there are decent motivations for collecting usage information. For example, Microsoft recently announced a tool that can diagnose pancreatic cancer by monitoring your Bing queries. Google famously runs Google Flu Trends. And of course, we all benefit from crowdsourced data that improves the quality of the services we use — from mapping applications to restaurant reviews.

Unfortunately, even well-meaning data collection can go bad. For example, in the late 2000s, Netflix ran a competition to develop a better film recommendation algorithm. To drive the competition, they released an “anonymized” viewing dataset that had been stripped of identifying information. Unfortunately, this de-identification turned out to be insufficient. In a well-known piece of work, Narayanan and Shmatikov showed that such datasets could be used to re-identify specific users — and even predict their political affiliation! — if you simply knew a little bit of additional information about a given user.

This sort of thing should be worrying to us. Not just because companies routinely share data (though they do) but because breaches happen, and because even statistics about a dataset can sometimes leak information about the individual records used to compute it. Differential Privacy is a set of tools that was designed to address this problem.

What is Differential Privacy?

Differential Privacy is a privacy definition that was originally developed by Dwork, Nissim, McSherry and Smith, with major contributions by many others over the years. Roughly speaking, what it states can summed up intuitively as follows:

Imagine you have two otherwise identical databases, one with your information in it, and one without it. Differential Privacy ensures that the probability that a statistical query will produce a given result is (nearly) the same whether it’s conducted on the first or second database.

One way to look at this is that DP provides a way to know if your data has a significant effect on the outcome of a query. If it doesn’t, then you might as well contribute to the database — since there’s almost no harm that can come of it. Consider a silly example:

Imagine that you choose to enable a reporting feature on your iPhone that tells Apple if you like to use the 💩  emoji routinely in your iMessage conversations. This report consists of a single bit of information: 1 indicates you like 💩 , and 0 doesn’t. Apple might receive these reports and fill them into a huge database. At the end of the day, it wants to be able to derive a count of the users who like this particular emoji.

It goes without saying that the simple process of “tallying up the results” and releasing them does not satisfy the DP definition, since computing a sum on the database that contains your information will potentially produce a different result from computing the sum on a database without it. Thus, even though these sums may not seem to leak much information, they reveal at least a little bit about you. A key observation of the Differential Privacy research is that in many cases, DP can be achieved if the tallying party is willing to add random noise to the result. For example, rather than simply reporting the sum, the tallying party can inject noise from a Laplace or gaussian distribution, producing a result that’s not quite exact — but that masks the contents of any given row. (For other interesting functions, there are many other techniques as well.)

Even more usefully, the calculation of “how much” noise to inject can be made without knowing the contents of the database itself (or even its size). That is, the noise calculation can be performed based only on knowledge of the function to be computed, and the acceptable amount of data leakage.

A tradeoff between privacy and accuracy

Now obviously calculating the total number of 💩 -loving users on a system is a pretty silly example. The neat thing about DP is that the same overall approach can be applied to much more interesting functions, including complex statistical calculations like the ones used by Machine Learning algorithms. It can even be applied when many different functions are all computed over the same database.

But there’s a big caveat here. Namely, while the amount of “information leakage” from a single query can be bounded by a small value, this value is not zero. Each time you query the database on some function, the total “leakage” increases — and can never go down. Over time, as you make more queries, this leakage can start to add up.

This is one of the more challenging aspects of DP. It manifests in two basic ways:

  1. The more information you intend to “ask” of your database, the more noise has to be injected in order to minimize the privacy leakage. This means that in DP there is generally a fundamental tradeoff between accuracy and privacy, which can be a big problem when training complex ML models.
  2. Once data has been leaked, it’s gone. Once you’ve leaked as much data as your calculations tell you is safe, you can’t keep going — at least not without risking your users’ privacy. At this point, the best solution may be to just to destroy the database and start over. If such a thing is possible.

The total allowed leakage is often referred to as a “privacy budget”, and it determines how many queries will be allowed (and how accurate the results will be). The basic lesson of DP is that the devil is in the budget. Set it too high, and you leak your sensitive data. Set it too low, and the answers you get might not be particularly useful.

Now in some applications, like many of the ones on our iPhones, the lack of accuracy isn’t a big deal. We’re used to our phones making mistakes. But sometimes when DP is applied in complex applications, such as training Machine Learning models, this really does matter.

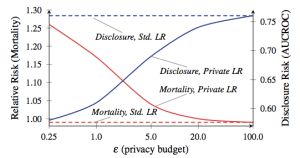

Mortality vs. info disclosure, from Frederikson et al.
The red line is partient mortality.

To give an absolutely crazy example of how big the tradeoffs can be, consider this paper by Frederikson et al. from 2014. The authors began with a public database linking Warfarin dosage outcomes to specific genetic markers. They then used ML techniques to develop a dosing model based on their database — but applied DP at various privacy budgets while training the model. Then they evaluated both the information leakage and the model’s success at treating simulated “patients”.

The results showed that the model’s accuracy depends a lot on the privacy budget on which it was trained. If the budget is set too high, the database leaks a great deal of sensitive patient information — but the resulting model makes dosing decisions that are about as safe as standard clinical practice. On the other hand, when the budget was reduced to a level that achieved meaningful privacy, the “noise-ridden” model had a tendency to kill its “patients”.

Now before you freak out, let me be clear: your iPhone is not going to kill you. Nobody is saying that this example even vaguely resembles what Apple is going to do on the phone. The lesson of this research is simply that there are interesting tradeoffs between effectiveness and the privacy protection given by any DP-based system — these tradeoffs depend to a great degree on specific decisions made by the system designers, the parameters chosen by the deploying parties, and so on. Hopefully Apple will soon tell us what those choices are.

How do you collect the data, anyway?

You’ll notice that in each of the examples above, I’ve assumed that queries are executed by a trusted database operator who has access to all of the “raw” underlying data. I chose this model because it’s the traditional model used in most of the literature, not because it’s a particularly great idea.

In fact, it would be worrisome if Apple was actually implementing their system this way. That would require Apple to collect all of your raw usage information into a massive centralized database, and then (“trust us!”) calculate privacy-preserving statistics on it. At a minimum this would make your data vulnerable to subpoenas, Russian hackers, nosy Apple executives and so on.

Fortunately this is not the only way to implement a Differentially Private system. On the theoretical side, statistics can be computed using fancy cryptographic techniques (such as secure multi-party computation or fully-homomorphic encryption.) Unfortunately these techniques are probably too inefficient to operate at the kind of scale Apple needs.

A much more promising approach is not to collect the raw data at all. This approach was recently pioneered by Google to collect usage statistics in their Chrome browser. The system, called RAPPOR, is based on an implementation of the 50-year old randomized response technique. Randomized response works as follows:

  1. When a user wants to report a piece of potentially embarrassing information (made up example: “Do you use Bing?”), they first flip a coin, and if the coin comes up “heads”, they return a random answer — calculated by flipping a second coin. Otherwise they answer honestly.
  2. The server then collects answers from the entire population, and (knowing the probability that the coins will come up “heads”), adjusts for the included “noise” to compute an approximate answer for the true response rate.

Intuitively, randomized response protects the privacy of individual user responses, because a “yes” result could mean that you use Bing, or it could just be the effect of the first mechanism (the random coin flip). More formally, randomized response has been shown to achieve Differential Privacy, with specific guarantees that can adjusted by fiddling with the coin bias.

 I’ve met Craig Federighi. He actually
looks like this in person.
RAPPOR takes this relatively old technique and turns it into something much more powerful. Instead of simply responding to a single question, it can report on complex vectors of questions, and may even return complicated answers, such as strings — e.g., which default homepage you use. The latter is accomplished by first encoding the string into a Bloom filter — a bitstring constructed using hash functions in a very specific way. The resulting bits are then injected with noise, and summed, and the answers recovered using a (fairly complex) decoding process.

While there’s no hard evidence that Apple is using a system like RAPPOR, there are some small hints. For example, Apple’s Craig Federighi describes Differential Privacy as using hashing, subsampling and noise injection to enable…crowdsourced learning while keeping the data of individual users completely private.” That’s pretty weak evidence for anything, admittedly, but presence of the “hashing” in that quote at least hints towards the use of RAPPOR-like filters.

The main challenge with randomized response systems is that they can leak data if a user answers the same question multiple times. RAPPOR tries to deal with this in a variety of ways, one of which is to identify static information and thus calculate “permanent answers” rather than re-randomizing each time. But it’s possible to imagine situations where such protections could go wrong. Once again, the devil is very much in the details — we’ll just have to see. I’m sure many fun papers will be written either way.

So is Apple’s use of DP a good thing or a bad thing?

As an academic researcher and a security professional, I have mixed feelings about Apple’s announcement. On the one hand, as a researcher I understand how exciting it is to see research technology actually deployed in the field. And Apple has a very big field.

On the flipside, as security professionals it’s our job to be skeptical — to at a minimum demand people release their security-critical code (as Google did with RAPPOR), or at least to be straightforward about what it is they’re deploying. If Apple is going to collect significant amounts of new data from the devices that we depend on so much, we should really make sure they’re doing it right — rather than cheering them for Using Such Cool Ideas. (I made this mistake already once, and I still feel dumb about it.)

But maybe this is all too “inside baseball”. At the end of the day, it sure looks like Apple is honestly trying to do something to improve user privacy, and given the alternatives, maybe that’s more important than anything else.

How do we pay for privacy?



If you haven’t read Julia Angwin’s excellent profile of GnuPG’s lead developer Werner Koch, now would be a great time to check it out. Koch, who single-handedly wrote GnuPG in 1997, has been doggedly maintaining the codebase ever since — and not getting paid very well for it. Despite good intentions on all sides, Koch has been essentially going broke.

The news is not all bad. In response to Angwin’s piece, ‘the Internet’ rallied to GnuPG’s aid. So far individual and corporate donors have coughed up over EU 200,000 to pay Koch and even hire him some help. It looks like GnuPG is saved, and so are its users — for the moment.

But is this model really sustainable? I’m pretty skeptical.

Sooner or later this money will run out. And next time this happens, the Internet might not have a quarter million in spare change to fork over. In fact, that’s already the normal state of affairs for most privacy tools — software ranging from GPGTools to OTR — most of which subsist on meager donations and volunteer time. The scary part is that thousands of people depend on these tools for their privacy and even their physical safety.

This raises a question: how can we support the long-term development and maintenance of privacy tools? It turns out that nobody really knows the answer to this — but a few people are groping towards a solution. In this (entirely non-technical) post I’m going to talk a bit about what people are doing today — and how we might do better in the future.NB: I should mention that most of the smart ideas in this post come from Meredith Whittaker, who leads Google’s Open Source Research Group, and helped found Simply Secure. The dumb ideas are all mine.

How we support privacy tools today

If you’re developing, or are interested in developing privacy tools in 2015, there are a handful of funding sources for you to choose from. They include:

  1. Self-funding. The vast majority of privacy tools come from engineers working in their spare time. This is a great way to develop prototypes and simple tools, but it tends not to be very sustainable — particularly when developers have to choose between family and code maintenance.
  2. Donations, charges and crowd-funding. A few major projects pull in some cash through donations, but this seems to work well only during a catastrophe or when the spotlight is on a particular project. GnuPG, for example, made a ton of money following their recent publicity, but before that they averaged a minuscule $20k per year — and this is for one of the most widely used privacy tools on the Internet! Projects like GPG Tools recently began charging for their software, which may work a bit better. Unfortunately this is anathema for young projects that rely on network effect for their success.
  3. Industry grants. From time to time major corporations give out modest chunks of money to tool developers, particularly when those companies use tools internally. Case in point: Google Stripe and Facebook just gave $50k each to GnuPG, and the Linux Foundation Core Infrastructure Initiative (essentially an industry funding group*) kicked in an additional $60k. Unfortunately this money is tragically difficult to come by — for the average developer it might as well not exist.
  4. Government and NGOs. Perhaps the most promising source of money comes from the U.S. government, and a set of NGOs that have sprung up to disburse it. The State Dept. directly funds the Tor Project, and the government also provides block grants to groups such as the Open Technology Fund (via Radio Free Asia) and the — confusingly similar — Open Technology Institute (at New America Foundation). OTF in particular has done a phenomenal job at funding both development and audit of privacy tools.
  5. Internal industry funding. Once in a blue moon a company proposes to internally develop a privacy tool like Google/Yahoo End-to-End. I’ll believe this works when I see it.
  6. Academic research funding. A few academic tools have managed to slip into this space, most notably OTR and Tor. But this model is awfully hard to sustain, mostly because academics don’t get paid to do things. We get paid to teach and write papers. It’s hard to sustain software development this way.
  7. Bitcoin wallet theft. This is mostly a joke.
Of these funding sources, the U.S. government is by far the heaviest hitter — responsible for funding many well-known projects such as Tor and TextSecure. While I tend to think any money is good money in the hands of right people, I should point out that this view is not universally shared. In part this is because we, admittedly, don’t have much of a process to validate code and convince non-experts that this process isn’t producing compromised code.

As Jillian York points out, US government funding also comes with some political baggage, and sadly, tends to attract more than its fair share of paranoia.

Developers need more than just money!

If you give a starving privacy tool a million bucks, you get a well-fed privacy tool. Unfortunately it may not actually be a better privacy tool. That’s not because people are trying to waste your cash. It turns out that software development, crypto, and security are just plain hard.

So yes, people need to eat — that’s a baseline. But beyond that what developers also need are things like expert guidance, security audits, analysis tools, and collaboration with other developers. They also really need help with the hardest problem in computer science, which is turning a pile of code into a product that people want to use.

A few groups like OTF (in case you’re not getting the hint, I really like them*) are trying to help with some of this. They fund professional code audits through groups like iSEC Partners. They fund usability resources and provide communications help. They host regular meetings where project members can get together and dork out about how to handle encrypted spam. A friend calls this a ‘dog park for developers who haven’t been outside for a while.’ This sounds silly, but it really, really helps.

Beyond those things, there’s still an awful problem of coordinating all of this technical stuff so that auditing results adhere to some consistent standard and produce knowledge that gets retained within the organization, as well as seeing that tools get proper academic analysis where necessary. And finally, there are useful services such as connecting developers with UI designers and helping them to turn their tools into real, usable products.

A few groups have done well at this all on their own. Moxie’s Open Whisper Systems not only launched a popular messaging app, but managed to get TextSecure (the protocol) into 600 million WhatsApp clients. Unfortunately this kind of success doesn’t come easy to people and requires a lot of assistance. Institutions can really help.

How can we do better?

There are a lot of answers to this question. But since this is a blog post, let’s swing for the fences. What’s really needed is a privacy incubator. A place that provides both funding (or at least, guides funding) as well as in-house technical staff and researchers, non-technical help such a communications, infrastructure, a great advisory board, and access to tools and engineers.

In essence this center would combine all the best parts of NGOs, academic institutions, and corporate research into one center. It would help with projects ranging from research to development, and would also provide infrastructure for developers — helping to keep them from re-inventing the wheel with each new idea, and perhaps even helping projects to merge when one has strengths. Connecting them with corporations who could conceivably deploy their tool.

This organization could also provide resources ranging from legal advice to marketing, two areas that software developers are notoriously bad at. It might even provide important, but miscellaneous resources like healthcare.

Please keep in mind I’m not advocating the creation of an entirely new organization — god forbid, we have enough of those already (the XKCD cartoon at right comes to mind). Instead, the goal should be to identify organizations that are already working and either connect that, or build up their capabilities with a large infusion of cash.

Anyway, we can all dream. But this is a dream that would actually make some difference.

So will this happen?

I guess it depends on the will and the money. It also depends on us: that is, on the willingness of the technically focused privacy/security community to accept that many of the elements we need to succeed are outside of our personal realm of expertise, and we need help with them.

Friends of mine also keep telling me that there are major philanthropic organizations out there looking to make a difference in this area. I’m still waiting to see it happen, but wheels turn slowly. One thing I can tell you: it wouldn’t take much to do better than what we have today.

* Full disclosure: I’m on the advisory board for Linux Foundation’s Core Infrastructure Initiative. I also once sat in on an advisory board meeting for OTF. Nobody paid me — but they did feed me lunch.

Attack of the Week: Unpicking PLAID

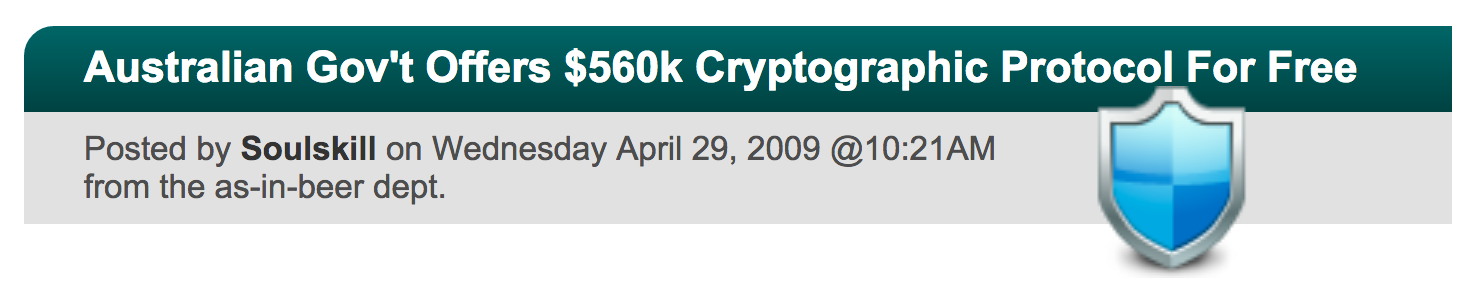

A few years ago I came across an amusing Slashdot story: ‘Australian Gov’t offers $560k Cryptographic Protocol for Free‘. The story concerned a protocol developed by Australia’s Centrelink, the equivalent of our Health and Human Services department, that was wonderfully named the Protocol for Lightweight Authentication of ID, or (I kid you not), ‘PLAID‘.

Now to me this headline did not inspire a lot of confidence. I’m a great believer in TANSTAAFL — in cryptographic protocol design and in life. I figure if someone has to use ‘free’ to lure you in the door, there’s a good chance they’re waiting in the other side with a hammer and a bottle of chloroform, or whatever the cryptographic equivalent might be.

A quick look at PLAID didn’t disappoint. The designers used ECB like it was going out of style; did unadvisable things with RSA encryption, and that was only the beginning.

What PLAID was not, I thought at the time, was bad to the point of being exploitable. Moreover, I got the idea that nobody would use the thing. It appears I was badly wrong on both counts.

This is apropos of a new paper authored by Degabriele, Fehr, Fischlin, Gagliardoni, Günther, Marson, Mittelbach and Paterson entitled ‘Unpicking Plaid: A Cryptographic Analysis of an ISO-standards-track Authentication Protocol‘. Not to be cute about it, but this paper shows that PLAID is, well, bad.

As is typical for this kind of post, I’m going to tackle the rest of the content in a ‘fun’ question and answer format.

What is PLAID?

In researching this blog post I was somewhat amazed to find that Australians not only have universal healthcare, but that they even occasionally require healthcare. That this surprised me is likely due to the fact that my knowledge of Australia mainly comes from the first two Crocodile Dundee movies.

It seems that not only do Australians have healthcare, but they also have access to a ‘smart’ ID card that allows them to authenticate themselves. These contactless smartcards run the proprietary PLAID protocol, which handles all of the ugly steps in authenticating the bearer, while also providing some very complicated protections to prevent user tracking.

This protocol has been standardized as Australian standard AS-5185-2010 and is currently “in the fast track standardization process for ISO/IEC 25185-1.2”. You can obtain your own copy of the standard for a mere 118 Swiss Francs, which my currency converter tells me is entirely too much money. So I’ll do my best to provide the essential details in this post — and many others are in the research paper.

How does PLAID work?

Accompanying tinfoil hat
not pictured.

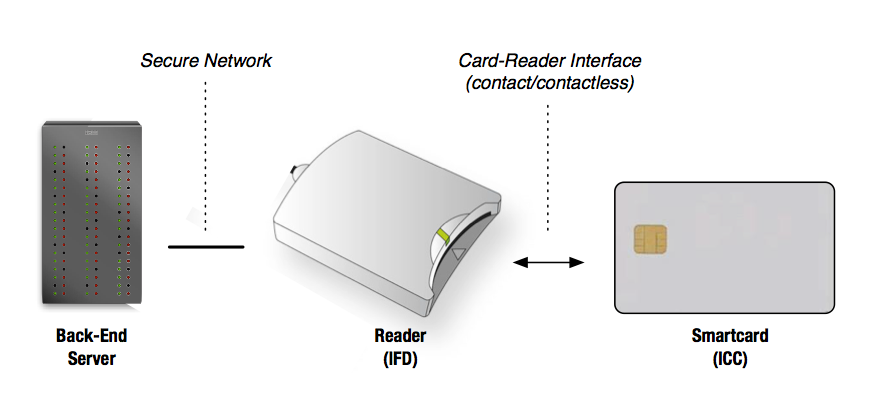

PLAID is primarily an identification and authentication protocol, but it also attempts to offer its users a strong form of privacy. Specifically, it attempts to ensure that only authorized readers can scan your card and determine who you are.

This is a laudable goal, since contactless smartcards are ‘promiscuous’, meaning that they can be scanned by anyone with the right equipment. Countless research papers have been written on tracking RFID devices, so the PLAID designers had to think hard about how they were going to prevent this sort of issue.

Before we get to what steps the PLAID designers took, let’s talk about what one shouldn’t do in building such systems.

Let’s imagine you have a smartcard talking to a reader where anyone can query the card. The primary goal of an authentication protocol is to perform some sort of mutual authentication handshake and derive a session key that the card can use to exchange sensitive data. The naive protocol might look like this:

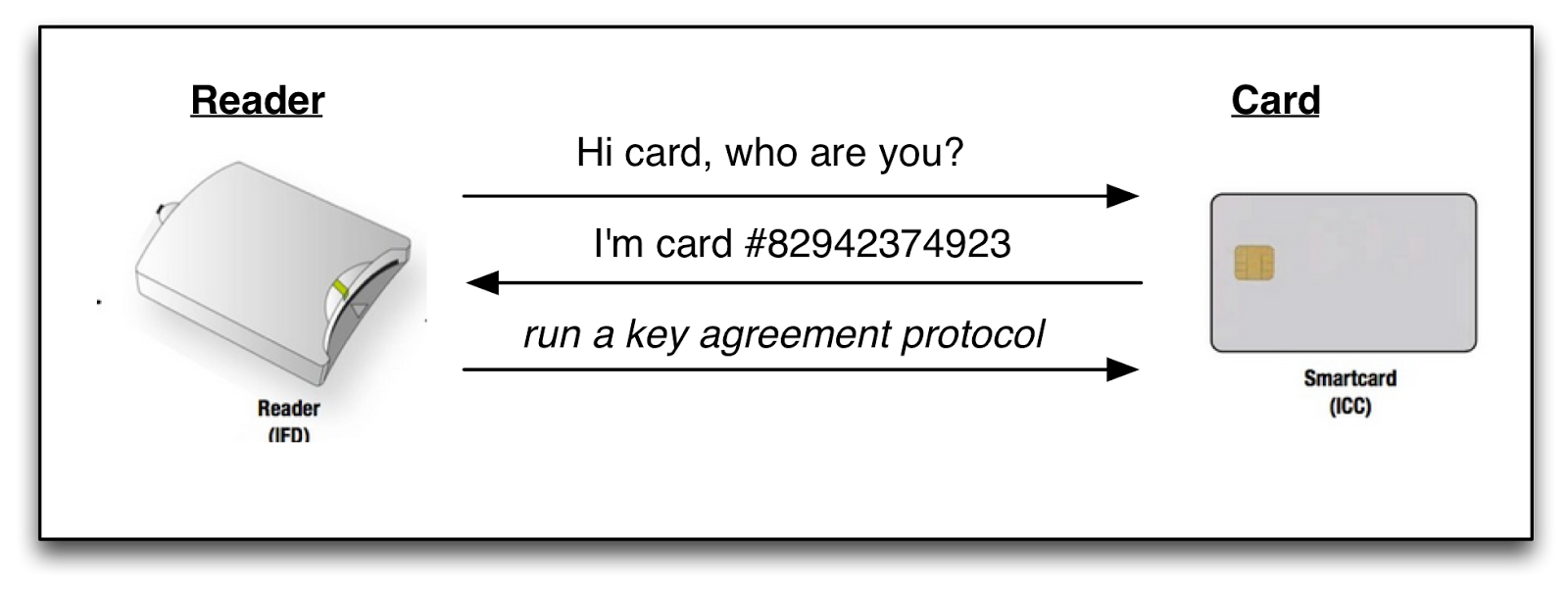

Naive approach to an authentication protocol. The card identifies itself
before the key agreement protocol is run, so the reader can look up a card-specific key.

The obvious problem with this protocol is that it reveals the card ID number to anyone who asks. Yet such identification appears necessary, since each card will have its own secret key material — and the reader must know the card’s key in order to run an authenticated key agreement protocol.

PLAID solves this problem by storing a set of RSA public keys corresponding to various authorized applications. When the reader says “Hi, I’m a hospital“, a PLAID card determines which public key it use to talk to hospitals, then encrypts data under the key and sends it over. Only a legitimate hospital should know the corresponding RSA secret key to decrypt this value.

So what’s the problem here?

PLAID’s approach would be peachy if there were only one public key to deal with. However PLAID cards can be provisioned to support many applications (called ‘capabilities’). For example, a citizen who routinely finds himself wrestling crocodiles might possess a capability unique to the Reptile Wound Treatment unit of a local hospital.* If the card responds to this capability, it potentially leaks information about the bearer.

To solve this problem, PLAID cards do some truly funny stuff.

Specifically, when a reader queries the card, the reader initially transmits a set of capabilities that it will support (e.g., ‘hospital’, ‘bank’, ‘social security center’). If the PLAID card has been provisioned with a matching public key, it goes ahead and uses it. If no matching key is found, however, the card does not send an error — since this would reveal user-specific information. Instead, it fakes a response by encrypting junk under a special ‘dummy’ RSA public key (called a ‘shill key’) that’s stored within the card. And herein lies the problem.

You see, the ‘shill key’ is unique to each card, which presents a completely new avenue for tracking individual cards. If an attacker can induce an error and subsequently fingerprint the resulting RSA ciphertext — that is, figure out which shill key was used to encipher it — they can potentially identify your card the next time they encounter you.

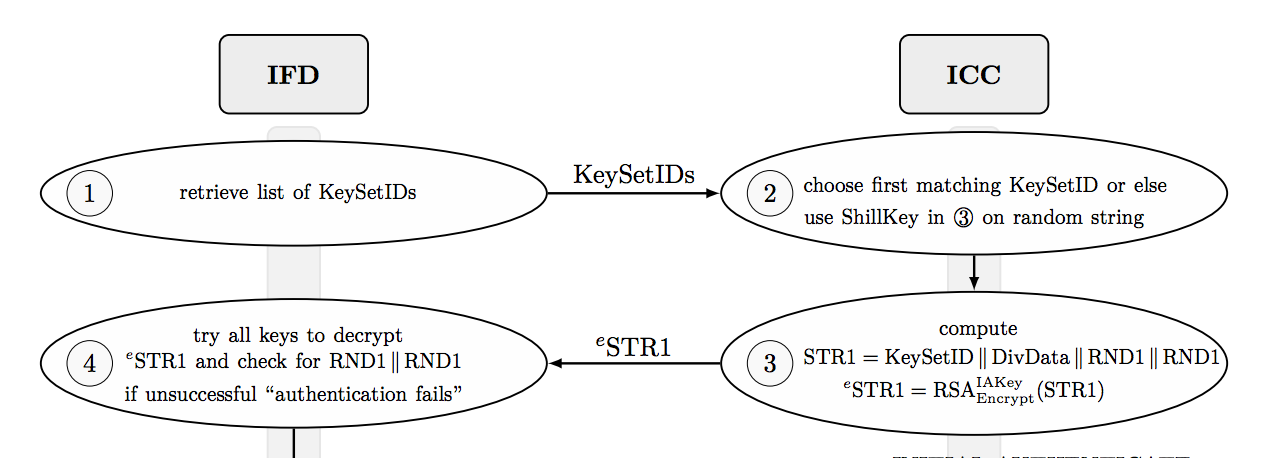

A portion of the PLAID protocol (source). The reader (IFD) is on the left, the card (ICC) is on the right.

Thus the problem of tracking PLAID cards devolves to one of matching RSA ciphertexts to unknown public keys. The PLAID designers assumed this would not be possible. What Degabriele et al. show is that they were wrong.

What do German Tanks have to do with RSA encryption?


To distinguish the RSA moduli of two different cards, the researchers employed of an old solution to a problem called the German Tank Problem. As the name implies, this is a real statistical problem that the allies ran up against during WWII.

The problem can be described as follows:

Imagine that a factory is producing tanks, where each tank is printed with a sequential serial number in the ordered sequence 1, 2, …, N. Through battlefield captures you then obtain a small and (presumably) random subset of k tanks. From the recovered serial numbers, your job is to estimate N, the total number of tanks produced by the factory.

Happily, this is the rare statistical problem with a beautifully simple solution.** Let m be the maximum serial number in the set of k tanks you’ve observed. To obtain a rough guess Ñ for the total number of tanks produced, you can simply compute the following formula:

So what’s this got to do with guessing an unknown RSA key?

Well, this turns out to be another instance of exactly the same problem. Imagine that I can repeatedly query your card with bogus ‘capabilities’ and thus cause it to enter its error state. To foil tracking, the card will send me a random RSA ciphertext encrypted with its (card-specific) “shill key”. I don’t know the public modulus corresponding to your key, but I do know that the ciphertext was computed using the standard RSA encryption formula m^e mod N.

My goal, as it was with the tanks, is to make a guess for N.

It’s worth pointing out that RSA is a permutation, which means that, provided the plaintext messages are randomly distributed, the ciphertexts will be randomly distributed as well. So all I need to do is collect a number of ciphertexts and apply the equation above. The resulting guess Ñ should then serve as a (fuzzy) identifier for any given card.

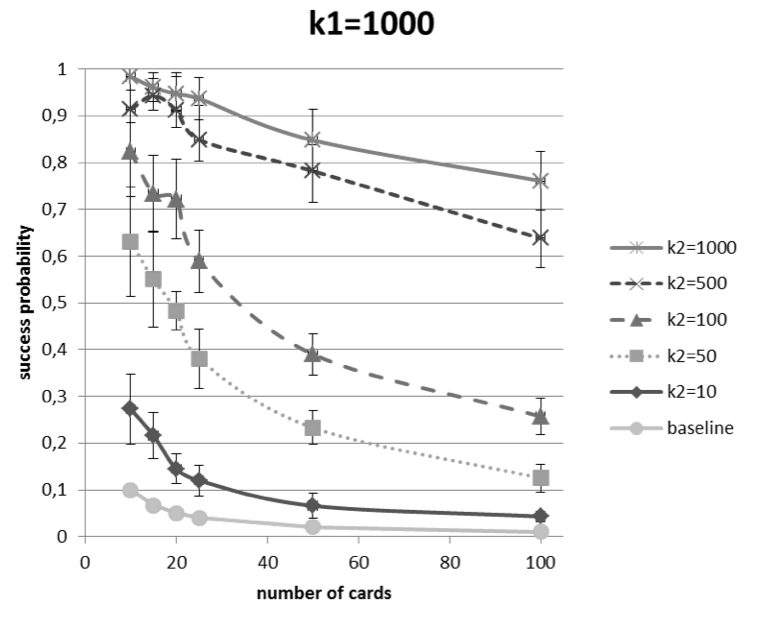

Results for identifying a given card in a batch of (up to) 100 cards. Each card was initially ‘fingerprinted’ by collecting k1=1000 RSA ciphertexts. Arbitrary cards were later identified by collecting varying number of ciphertexts (k2).

Now obviously this isn’t the whole story — the value Ñ isn’t exact, and you’ll get different levels of error depending on how many ciphertexts you get, and how many cards you have to distinguish amongst. But as the chart above shows, it’s possible to identify a specific card within in a real system (containing 100 cards) with reasonable probability.

But that’s not realistic at all. What if there are other cards in play?

It’s important to note that real life is nothing like a laboratory experiment. The experiment above considered a ‘universe’ consisting of only 100 cards, required an initial ‘training period’ of 1000 scans for a given card, and subsequent recognition demanded anywhere from 50 to 1000 scans of the card.

Since the authentication time for the cards is about 300 milliseconds per scan, this means that even the minimal number (50) of scans still requires about 15 seconds, and only produces the correct result with about 12% probability. This probability goes up dramatically the more scans you get to make.

Nonetheless, even the 50-scan result is significantly better than guessing, and with more concerted scans can be greatly improved. What this attack primarily serves to prove is that homebrew solutions are your enemy. Cooking up a clever approach to foiling tracking might seem like the right way to tackle a problem, but sometimes it can make you even more vulnerable than you were before.

How should one do this right?

The basic property that the PLAID designers were trying to achieve with this protocol is something called key privacy. Roughly speaking, a key private cryptosystem ensures that an attacker cannot link a given ciphertext (or collection of ciphertexts) to the public key that created them — even if the attacker knows the public key itself.

There are many excellent cryptosystems that provide strong key privacy. Ironically, most are more efficient than RSA; one solution to the PLAID problem is simply to switch to one of these. For example, many elliptic-curve (Diffie-Hellman or Elgamal) solutions will generally provide strong key privacy, provided that all public keys in the system are set in the same group.

A smartcard encryption scheme based on, say, Curve25519 would likely avoid most of the problems presented above, and might also be significantly faster to boot.

What else should I know about PLAID?

There are a few other flaws in the PLAID protocol that make the paper worthy of a careful read — if only to scare you away from designing your own protocols.

In addition to the shill key fingerprinting attacks, the authors also show how to identify the set of capabilities that a card supports, using a relatively efficient binary search approach. Beyond this, there are also many significantly more mundane flaws due to improper use of cryptography.

By far the ugliest of these are the protocol’s lack of proper RSA-OAEP padding, which may present potential (but implementation specific) vulnerabilities to Bleichenbacher’s attack. There’s also some almost de rigueur misuse of CBC mode encryption, and a handful of other flaws that should serve as audit flags if you ever run into them in the wild.

At the end of the day, bugs in protocols like PLAID mainly help to illustrate the difficulty of designing secure protocols from scratch. They also keep cryptographers busy with publications, so perhaps I shouldn’t complain too much.

You should probably read up a bit on Australia before you post again.

I would note that this really isn’t a question. But it’s absolutely true. And to this end: I would sincerely like to apologize to any Australian citizens who may have been offended by this post.

Notes:

* This capability is not explicitly described in the PLAID specification.

** The solution presented here — and used in the paper — is the frequentist approach to the problem. There is also a Bayesian approach, but it isn’t required for this application.

What’s the matter with PGP?

Last Thursday, Yahoo announced their plans to support end-to-end 6443976239_b20c3cbb28_mencryption using a fork of Google’s end-to-end email extension. This is a Big Deal. With providers like Google and Yahoo onboard, email encryption is bound to get a big kick in the ass. This is something email badly needs.

So great work by Google and Yahoo! Which is why following complaint is going to seem awfully ungrateful. I realize this and I couldn’t feel worse about it.

As transparent and user-friendly as the new email extensions are, they’re fundamentally just re-implementations of OpenPGP — and non-legacy-compatible ones, too. The problem with this is that, for all the good PGP has done in the past, it’s a model of email encryption that’s fundamentally broken.

It’s time for PGP to die.

In the remainder of this post I’m going to explain why this is so, what it means for the future of email encryption, and some of the things we should do about it. Nothing I’m going to say here will surprise anyone who’s familiar with the technology — in fact, this will barely be a technical post. That’s because, fundamentally, most of the problems with email encryption aren’t hyper-technical problems. They’re still baked into the cake.

Background: PGP

Back in the late 1980s a few visionaries realized that this new ‘e-mail’ thing was awfully convenient and would likely be the future — but that Internet mail protocols made virtually no effort to protect the content of transmitted messages. In those days (and still in these days) email transited the Internet in cleartext, often coming to rest in poorly-secured mailspools.

This inspired folks like Phil Zimmermann to create tools to deal with the problem. Zimmermann’s PGP was a revolution. It gave users access to efficient public-key cryptography and fast symmetric ciphers in package you could install on a standard PC. Even better, PGP was compatible with legacy email systems: it would convert your ciphertext into a convenient ASCII armored format that could be easily pasted into the sophisticated email clients of the day — things like “mail”, “pine” or “the Compuserve e-mail client”.

It’s hard to explain what a big deal PGP was. Sure, it sucked badly to use. But in those days, everything sucked badly to use. Possession of a PGP key was a badge of technical merit. Folks held key signing parties. If you were a geek and wanted to discreetly share this fact with other geeks, there was no better time to be alive.

We’ve come a long way since the 1990s, but PGP mostly hasn’t. While the protocol has evolved technically — IDEA replaced BassOMatic, and was in turn replaced by better ciphers — the fundamental concepts of PGP remain depressingly similar to what Zimmermann offered us in 1991. This has become a problem, and sadly one that’s difficult to change.

Let’s get specific.

PGP keys suck

Before we can communicate via PGP, we first need to exchange keys. PGP makes this downright unpleasant. In some cases, dangerously so.

Part of the problem lies in the nature of PGP public keys themselves. For historical reasons they tend to be large and contain lots of extraneous information, which it difficult to print them a business card or manually compare. You can write this off to a quirk of older technology, but even modern elliptic curve implementations still produce surprisingly large keys.

Three public keys offering roughly the same security level. From top-left: (1) Base58-encoded Curve25519 public key used in miniLock. (2) OpenPGP 256-bit elliptic curve public key format. (3a) GnuPG 3,072 bit RSA key and (3b) key fingerprint.

Since PGP keys aren’t designed for humans, you need to move them electronically. But of course humans still need to verify the authenticity of received keys, as accepting an attacker-provided public key can be catastrophic.

PGP addresses this with a hodgepodge of key servers and public key fingerprints. These components respectively provide (untrustworthy) data transfer and a short token that human beings can manually verify. While in theory this is sound, in practice it adds complexity, which is always the enemy of security.

Now you may think this is purely academic. It’s not. It can bite you in the ass.

Imagine, for example, you’re a source looking to send secure email to a reporter at the Washington Post. This reporter publishes his fingerprint via Twitter, which means most obvious (and recommended) approach is to ask your PGP client to retrieve the key by fingerprint from a PGP key server. On the GnuPG command line can be done as follows:

Now let’s ignore the fact that you’ve just leaked your key request to an untrusted server via HTTP. At the end of this process you should have the right key with high reliability. Right?

Except maybe not: if you happen to do this with GnuPG 2.0.18 — one version off from the very latest GnuPG — the client won’t actually bother to check the fingerprint of the received key. A malicious server (or HTTP attacker) can ship you back the wrong key and you’ll get no warning. This is fixed in the very latest versions of GPG but… Oy Vey.

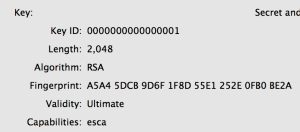

PGP Key IDs are also pretty terrible,
due to the short length and continued
support for the broken V3 key format.

You can say that it’s unfair to pick on all of PGP over an implementation flaw in GnuPG, but I would argue it speaks to a fundamental issue with the PGP design. PGP assumes keys are too big and complicated to be managed by mortals, but then in practice it practically begs users to handle them anyway. This means we manage them through a layer of machinery, and it happens that our machinery is far from infallible.

Which raises the question: why are we bothering with all this crap infrastructure in the first place. If we must exchange things via Twitter, why not simply exchange keys? Modern EC public keys are tiny. You could easily fit three or four of them in the space of this paragraph. If we must use an infrastructure layer, let’s just use it to shunt all the key metadata around.

PGP key management sucks

Manual key management is a mug’s game. Transparent (or at least translucent) key management is the hallmark of every successful end-to-end secure encryption system.

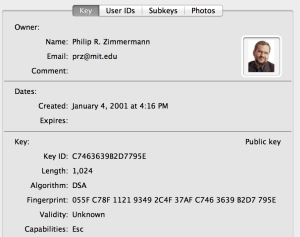

If you can’t trust Phil, who can you trust?

Now often this does involve some tradeoffs — e.g.,, the need to trust a central authority to distribute keys — but even this level of security would be lightyears better than the current situation with webmail.

To their credit, both Google and Yahoo have the opportunity to build their own key management solutions (at least, for those who trust Google and Yahoo), and they may still do so in the future. But today’s solutions don’t offer any of this, and it’s not clear when they will. Key management, not pretty web interfaces, is the real weakness holding back widespread secure email.

signalstring
ZRTP authentication string, as used in Signal.

For the record, classic PGP does have a solution to the problem. It’s called the “web of trust“, and it involves individuals signing each others’ keys. I refuse to go into the problems with WoT because, frankly, life is too short. The TL;DR is that ‘trust’ means different things to you than it does to me. Most OpenPGP implementations do a lousy job of presenting any of this data to their users anyway.

The lack of transparent key management in PGP isn’t unfixable. For those who don’t trust Google or Yahoo, there are experimental systems like Keybase.io that attempt to tie keys to user identities. In theory we could even exchange our offline encryption keys through voice-authenticated channels using apps like OpenWhisperSystems’ Signal. So far, nobody’s bothered to do this — all of these modern encryption tools are islands with no connection to the mainland. Connecting them together represents one of the real challenges facing widespread encrypted communications.

No forward secrecy

Try something: go delete some mail from your Gmail account. You’ve hit the archive button. Presumably you’ve also permanently wiped your Deleted Items folder. Now make sure you wipe your browser cache and the mailbox files for any IMAP clients you might be running (e.g., on your phone). Do any of your devices use SSD drives? Probably a safe bet to securely wipe those devices entirely. And at the end of this Google may still have a copy which could be vulnerable to law enforcement request or civil subpoena.

(Let’s not get into the NSA’s collect-it-all policy for encrypted messages. If the NSA is your adversary just forget about PGP.)

Forward secrecy (usually misnamed “perfect forward secrecy”) ensures that if you can’t destroy the ciphertexts, you can at least dispose of keys when you’re done with them. Many online messaging systems like off-the-record messaging use PFS by default, essentially deriving a new key with each message volley sent. Newer ‘ratcheting’ systems like Trevor Perrin’s Axolotl (used by TextSecure) have also begun to address the offline case.

Adding forward secrecy to asynchronous offline email is a much bigger challenge, but fundamentally it’s at least possible to some degree. While securing the initial ‘introduction’ message between two participants may be challenging*, each subsequent reply can carry a new ephemeral key to be used in future communications. However this requires breaking changes to the PGP protocol and to clients — changes that aren’t likely to happen in a world where webmail providers have doubled down on the PGP model.

The OpenPGP format and defaults suck

Poking through a modern OpenPGP implementation is like visiting a museum of 1990s crypto. For legacy compatibility reasons, many clients use old ciphers like CAST5 (a cipher that predates the AES competition). RSA encryption uses padding that looks disturbingly like PKCS#1v1.5 — a format that’s been relentlessly exploited in the past. Key size defaults don’t reach the 128-bit security level. MACs are optional. Compression is often on by default. Elliptic curve crypto is (still!) barely supported.

If Will Smith looked like this when your cryptography was current, you need better cryptography.

Most of these issues are not exploitable unless you use PGP in a non-standard way, e.g., for instant messaging or online applications. And some people do use PGP this way.

But even if you’re just using PGP just to send one-off emails to your grandmother, these bad defaults are pointless and unnecessary. It’s one thing to provide optional backwards compatibility for that one friend who runs PGP on his Amiga. But few of my contacts do — and moreover, client versions are clearly indicated in public keys.** Even if these archaic ciphers and formats aren’t exploitable today, the current trajectory guarantees we’ll still be using them a decade from now. Then all bets are off.

On the bright side, both Google and Yahoo seem to be pushing towards modern implementations that break compatibility with the old. Which raises a different question. If you’re going to break compatibility with most PGP implementations, why bother with PGP at all?

Terrible mail client implementations

This is by far the worst aspect of the PGP ecosystem, and also the one I’d like to spend the least time on. In part this is because UX isn’t technically PGP’s problem; in part because the experience is inconsistent between implementations, and in part because it’s inconsistent between users: one person’s ‘usable’ is another person’s technical nightmare.

But for what it’s worth, many PGP-enabled mail clients make it ridiculously easy to send confidential messages with encryption turned off, to send unimportant messages with encryption turned on, to accidentally send to the wrong person’s key (or the wrong subkey within a given person’s key). They demand you encrypt your key with a passphrase, but routinely bug you to enter that passphrase in order to sign outgoing mail — exposing your decryption keys in memory even when you’re not reading secure email.

Most of these problems stem from the fact that PGP was designed to retain compatibility with standard (non-encrypted) email. If there’s one lesson from the past ten years, it’s that people are comfortable moving past email. We now use purposebuilt messaging systems on a day-to-day basis. The startup cost of a secure-by-default environment is, at this point, basically an app store download.

Incidentally, the new Google/Yahoo web-based end-to-end clients dodge this problem by providing essentially no user interface at all. You enter your message into a separate box, and then plop the resulting encrypted data into the Compose box. This avoids many of the nastier interface problems, but only by making encryption non-transparent. This may change; it’s too soon to know how.

So what should we be doing?

Quite a lot actually. The path to a proper encrypted email system isn’t that far off. At minimum, any real solution needs:

  • A proper approach to key management. This could be anything from centralized key management as in Apple’s iMessage — which would still be better than nothing — to a decentralized (but still usable) approach like the one offered by Signal or OTR. Whatever the solution, in order to achieve mass deployment, keys need to be made much more manageable or else submerged from the user altogether.
  • Forward secrecy baked into the protocol. This should be a pre-condition to any secure messaging system.
  • Cryptography that post-dates the Fresh Prince. Enough said.
  • Screw backwards compatibility. Securing both encrypted and unencrypted email is too hard. We need dedicated networks that handle this from the start.

A number of projects are already going in this direction. Aside above-mentioned projects like Axolotl and TextSecure — which pretend to be text messaging systems, but are really email in disguise — projects like Mailpile are trying to re-architect the client interface (though they’re sticking with the PGP paradigm). Projects like SMIMP are trying to attack this at the protocol level.*** At least in theory projects like DarkMail are also trying to adapt text messaging protocols to the email case, though details remain few and far between.

It also bears noting that many of the issues above could, in principle at least, be addressed within the confines of the OpenPGP format. Indeed, if you view ‘PGP’ to mean nothing more than the OpenPGP transport, a lot of the above seems easy to fix — with the exception of forward secrecy, which really does seem hard to add without some serious hacks. But in practice, this is rarely all that people mean when they implement ‘PGP’.

Conclusion

I realize I sound a bit cranky about this stuff. But as they say: a PGP critic is just a PGP user who’s actually used the software for a while. At this point so much potential in this area and so many opportunities to do better. It’s time for us to adopt those ideas and stop looking backwards.

Notes:

* Forward security even for introduction messages can be implemented, though it either require additional offline key distribution (e.g., TextSecure’s ‘pre-keys’) or else the use of advanced primitives. For the purposes of a better PGP, just handling the second message in a conversation would be sufficient.

** Most PGP keys indicate the precise version of the client that generated them (which seems like a dumb thing to do). However if you want to add metadata to your key that indicates which ciphers you prefer, you have to use an optional command.

*** Thanks to Taylor Hornby for reminding me of this.

On the NSA

Let me tell you the story of my tiny brush with the biggest crypto story of the year.

A few weeks ago I received a call from a reporter at ProPublica, asking me background questions about encryption. Right off the bat I knew this was going to be an odd conversation, since this gentleman seemed convinced that the NSA had vast capabilities to defeat encryption. And not in a ‘hey, d’ya think the NSA has vast capabilities to defeat encryption?’ kind of way. No, he’d already established the defeating. We were just haggling over the details.

Oddness aside it was a fun (if brief) set of conversations, mostly involving hypotheticals. If the NSA could do this, how might they do it? What would the impact be? I admit that at this point one of my biggest concerns was to avoid coming off like a crank. After all, if I got quoted sounding too much like an NSA conspiracy nut, my colleagues would laugh at me. Then I might not get invited to the cool security parties.

All of this is a long way of saying that I was totally unprepared for today’s bombshell revelations describing the NSA’s efforts to defeat encryption. Not only does the worst possible hypothetical I discussed appear to be true, but it’s true on a scale I couldn’t even imagine. I’m no longer the crank. I wasn’t even close to cranky enough.

And since I never got a chance to see the documents that sourced the NYT/ProPublica story — and I would give my right arm to see them — I’m determined to make up for this deficit with sheer speculation. Which is exactly what this blog post will be.

‘Bullrun’ and ‘Cheesy Name’

If you haven’t read the ProPublica/NYT or Guardian stories, you probably should. The TL;DR is that the NSA has been doing some very bad things. At a combined cost of $250 million per year, they include:

  1. Tampering with national standards (NIST is specifically mentioned) to promote weak, or otherwise vulnerable cryptography.
  2. Influencing standards committees to weaken protocols.
  3. Working with hardware and software vendors to weaken encryption and random number generators.
  4. Attacking the encryption used by ‘the next generation of 4G phones‘.

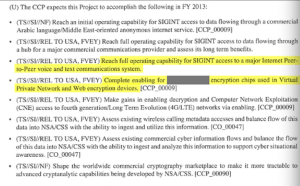

  5. Obtaining cleartext access to ‘a major internet peer-to-peer voice and text communications system’ (Skype?)
  6. Identifying and cracking vulnerable keys.
  7. Establishing a Human Intelligence division to infiltrate the global telecommunications industry.
  8. And worst of all (to me): somehow decrypting SSL connections.

All of these programs go by different code names, but the NSA’s decryption program goes by the name ‘Bullrun’ so that’s what I’ll use here.

How to break a cryptographic system

There’s almost too much here for a short blog post, so I’m going to start with a few general thoughts. Readers of this blog should know that there are basically three ways to break a cryptographic system. In no particular order, they are:

  1. Attack the cryptography. This is difficult and unlikely to work against the standard algorithms we use (though there are exceptions like RC4.) However there are many complex protocols in cryptography, and sometimes they are vulnerable.
  2. Go after the implementation. Cryptography is almost always implemented in software — and software is a disaster. Hardware isn’t that much better. Unfortunately active software exploits only work if you have a target in mind. If your goal is mass surveillance, you need to build insecurity in from the start. That means working with vendors to add backdoors.
  3. Access the human side. Why hack someone’s computer if you can get them to give you the key?

Bruce Schneier, who has seen the documents, says that ‘math is good’, but that ‘code has been subverted’. He also says that the NSA is ‘cheating‘. Which, assuming we can trust these documents, is a huge sigh of relief. But it also means we’re seeing a lot of (2) and (3) here.

So which code should we be concerned about? Which hardware?

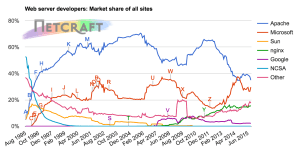

SSL Servers by OS type. Source: Netcraft.

This is probably the most relevant question. If we’re talking about commercial encryption code, the lion’s share of it uses one of a small number of libraries. The most common of these are probably the Microsoft CryptoAPI (and Microsoft SChannel) along with the OpenSSL library.

Of the libraries above, Microsoft is probably due for the most scrutiny. While Microsoft employs good (and paranoid!) people to vet their algorithms, their ecosystem is obviously deeply closed-source. You can view Microsoft’s code (if you sign enough licensing agreements) but you’ll never build it yourself. Moreover they have the market share. If any commercial vendor is weakening encryption systems, Microsoft is probably the most likely suspect.

And this is a problem because Microsoft IIS powers around 20% of the web servers on the Internet — and nearly forty percent of the SSL servers! Moreover, even third-party encryption programs running on Windows often depend on CAPI components, including the random number generator. That makes these programs somewhat dependent on Microsoft’s honesty.

Probably the second most likely candidate is OpenSSL. I know it seems like heresy to imply that OpenSSL — an open source and widely-developed library — might be vulnerable. But at the same time it powers an enormous amount of secure traffic on the Internet, thanks not only to the dominance of Apache SSL, but also due to the fact that OpenSSL is used everywhere. You only have to glance at the FIPS CMVP validation lists to realize that many ‘commercial’ encryption products are just thin wrappers around OpenSSL.

Unfortunately while OpenSSL is open source, it periodically coughs up vulnerabilities. Part of this is due to the fact that it’s a patchwork nightmare originally developed by a programmer who thought it would be a fun way to learn Bignum division.* Part of it is because crypto is unbelievably complicated. Either way, there are very few people who really understand the whole codebase.

On the hardware side (and while we’re throwing out baseless accusations) it would be awfully nice to take another look at the Intel Secure Key integrated random number generators that most Intel processors will be getting shortly. Even if there’s no problem, it’s going to be an awfully hard job selling these internationally after today’s news.

Which standards?

From my point of view this is probably the most interesting and worrying part of today’s leak. Software is almost always broken, but standards — in theory — get read by everyone. It should be extremely difficult to weaken a standard without someone noticing. And yet the Guardian and NYT stories are extremely specific in their allegations about the NSA weakening standards.

The Guardian specifically calls out the National Institute of Standards and Technology (NIST) for a standard they published in 2006. Cryptographers have always had complicated feelings about NIST, and that’s mostly because NIST has a complicated relationship with the NSA.

Here’s the problem: the NSA ostensibly has both a defensive and an offensive mission. The defensive mission is pretty simple: it’s to make sure US information systems don’t get pwned. A substantial portion of that mission is accomplished through fruitful collaboration with NIST, which helps to promote data security standards such as the Federal Information Processing Standards (FIPS) and NIST Special Publications.

I said cryptographers have complicated feelings about NIST, and that’s because we all know that the NSA has the power to use NIST for good as well as evil. Up until today there’s been no real evidence of malice, despite some occasional glitches — and compelling evidence that at least one NIST cryptographic standard could have contained a backdoor. But now maybe we’ll have to re-evaluate that relationship. As utterly crazy as it may seem.

Unfortunately, we’re highly dependent on NIST standards, ranging from pseudo-random number generators to hash functions and ciphers, all the way to the specific elliptic curves we use in SSL/TLS. While the possibility of a backdoor in any of these components does seem remote, trust has been violated. It’s going to be an absolute nightmare ruling it out.

Which people?

Probably the biggest concern in all this is the evidence of collaboration between the NSA and unspecified ‘telecom providers’. We already know that the major US (and international) telecom carriers routinely assist the NSA in collecting data from fiber-optic cables. But all this data is no good if it’s encrypted.

While software compromises and weak standards can help the NSA deal with some of this, by far the easiest way to access encrypted data is to simply ask for — or steal — the keys. This goes for something as simple as cellular encryption (protected by a single key database at each carrier) all the way to SSL/TLS which is (most commonly) protected with a few relatively short RSA keys.

The good and bad thing is that as the nation hosting the largest number of popular digital online services (like Google, Facebook and Yahoo) many of those critical keys are located right here on US soil. Simultaneously, the people communicating with those services — i.e., the ‘targets’ — may be foreigners. Or they may be US citizens. Or you may not know who they are until you scoop up and decrypt all of their traffic and run it for keywords.

Which means there’s a circumstantial case that the NSA and GCHQ are either directly accessing Certificate Authority keys** or else actively stealing keys from US providers, possibly (or probably) without executives’ knowledge. This only requires a small number of people with physical or electronic access to servers, so it’s quite feasible.*** The one reason I would have ruled it out a few days ago is because it seems so obviously immoral if not illegal, and moreover a huge threat to the checks and balances that the NSA allegedly has to satisfy in order to access specific users’ data via programs such as PRISM.

To me, the existence of this program is probably the least unexpected piece of all the news today. Somehow it’s also the most upsetting.

So what does it all mean?

I honestly wish I knew. Part of me worries that the whole security industry will talk about this for a few days, then we’ll all go back to our normal lives without giving it a second thought. I hope we don’t, though. Right now there are too many unanswered questions to just let things lie.

The most likely short-term effect is that there’s going to be a lot less trust in the security industry. And a whole lot less trust for the US and its software exports. Maybe this is a good thing. We’ve been saying for years that you can’t trust closed code and unsupported standards: now people will have to verify.

Even better, these revelations may also help to spur a whole burst of new research and re-designs of cryptographic software. We’ve also been saying that even open code like OpenSSL needs more expert eyes. Unfortunately there’s been little interest in this, since the clever researchers in our field view these problems as ‘solved’ and thus somewhat uninteresting.

What we learned today is that they’re solved all right. Just not the way we thought.

Notes:

* The original version of this post repeated a story I heard recently (from a credible source!) about Eric Young writing OpenSSL as a way to learn C. In fact he wrote it as a way to learn Bignum division, which is way cooler. Apologies Eric!

** I had omitted the Certificate Authority route from the original post due to an oversight — thanks to Kenny Patterson for pointing this out — but I still think this is a less viable attack for passive eavesdropping (that does not involve actively running a man in the middle attack). And it seems that much of the interesting eavesdropping here is passive.

*** The major exception here is Google, which deploys Perfect Forward Secrecy for many of its connections, so key theft would not work here. To deal with this the NSA would have to subvert the software or break the encryption in some other way.

On cellular encryption

If you’re interested in technology/privacy issues then you probably heard last week’s big news out of the Boston Marathon case. It comes by way of former FBI agent Tim Clemente, who insists that our government routinely records all domestic phone calls.

Clemente’s claim generated lots of healthy skepticism. This isn’t because the project is technically infeasible (the numbers mostly add up), or because there’s no precedent for warrantless wiretapping. To me the most convincing objection was simple: it’d be hard to keep secret.* Mostly for boring phone company reasons.

But this led to another interesting discussion. What if we forget local phone eavesdropping and focus on an ‘easier’ problem: tapping only cellular phone calls.
Cellular eavesdropping seems a lot more tractable, if only because mobile calls are conducted on a broadcast channel. That means you can wiretap with almost no carrier involvement. In fact there’s circumstancial evidence that this already happening — just by different parties than you’d think. According to a new book by reporters Marc Ambinder and Dave Brown:

The FBI has quietly removed from several Washington, D.C.–area cell phone towers, transmitters that fed all data to wire rooms at foreign embassies.

This raises a few questions: once you’ve tapped someone’s cellular signals, what do you do with the data? Isn’t it all encrypted? And how easy would it be for the US or some foreign government to lay their hands on the plaintext?

All of this which serves as a wonderful excuse to noodle about the state of modern cellular encryption. Be warned that this is not going to be a short post! For those who don’t like long articles, here’s the TL;DR: cellular encryption is a whole lot worse than you think.

GSM

GSM is the granddaddy of all digital cellular protocols, and it remains of the most popular protocols in the world. One thing that makes GSM special is its call encryption capability: the protocol is designed to encrypt all calls in between the handset and the local tower.

Call encryption is facilitated by a long-term secret key (call it K) that’s stored within the tamper-resistant SIM card in your GSM phone. Your carrier also has a copy of this key. When your GSM phone connects to a tower, the parties execute the following authentication and key agreement protocol:

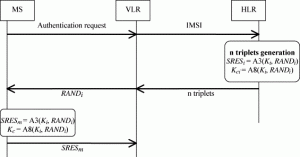

GSM authentication and key agreement protocol (source). MS represents the ‘mobile station’ (phone) and
HLR is the ‘home location register’, a central database. The MS and HLR combine a long-term secret Ki
with a random nonce RAND to create the shared communication key Kc. A3 and A8 are
typically implemented using the COMP128 function.
The interaction above serves two purposes: first, both the phone and carrier (HLR) derive a pair of values that will be used for authentication and key agreement. This includes a session key Kc as well as a short authentication token SRES that the phone will use to authenticate itself to the tower. Derivation is performed using two functions (A3 and A8) that accept the long-term secret K and with a random nonce RAND.
There are a handful of well-known problems with the GSM security protocols. In no particular order, they are:
  1. Lack of tower authentication. GSM phones authenticate to the tower, but the tower doesn’t authenticate back. This means that anyone can create a ‘fake’ tower that your phone will connect to. The major problem here is that in GSM, the tower gets to pick the encryption algorithm! That means your attacker can simply turn encryption off (by setting encryption ‘algorithm’ A5/0) and simply route the cleartext data itself.In theory your phone is supposed to alert you to this kind of attack, but the SIM chip contains a bit that can de-active the warning. And (as researcher Chris Paget discovered) carriers often set this bit.
  2. Bad key derivation algorithms. The GSM ciphers were developed using the ‘make stuff up and pray nobody sees it‘ school of cryptographic algorithm design. This is a bad approach, since it’s incredibly hard to keep algorithms secret — and when they do leak, they tend to break badly. This was the case for the original A3/A8 algorithms, which are both implemented using single function called COMP128-1. Unfortunately COMP128 turns out to be seriously broken — to the point where you can clone a user’s SIM key in as few as 8 queries.
  3. Bad encryption algorithms. Fortunately it’s easy to replace COMP128-1 by swapping out your SIM card. Unfortunately the situation is much worse for GSM’s A5/1 call encryption cipher, which is embedded in the hardware of most handsets and tower equipment. A5/1 was leaked around the same time as COMP128 and rapidly succumbed to a series of increasingly powerful attacks. Today it’s possible to conduct an efficient known-plaintext attack on A5/1 using a series of rainbow tables you can obtain from BitTorrent. The upshot is that most A5/1 calls can now be decrypted on a high-end PC.
  4. Terrible encryption algorithms. But it’s actually worse than that. GSM phones support an ‘export weakened‘ variant called A5/2, which is so weak you can break it in real time. The worst part is that A5/2 uses the same key as A5/1 — which means an active attacker (see #1 above) can briefly activate the A5/2 mode, crack to recover the encryption key, then switch back to A5/1 with a known key. This is much faster than attacking A5/1 directly, and allows eavesdroppers to intercept incoming phone calls from a legitimate (A5/1 supporting) tower.

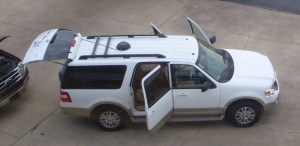

Alleged ‘Stingray’ tracking device
mounted on an SUV (source).

Another unfortunate aspect of the GSM protocol is that you don’t need to attack the crypto to do useful things. For example, if all you want to do is determine which devices area in an area, you simply present yourself as a valid tower — and see which phones connect to you (by sending their IMSI values). This is the approach taken by IMSI-catchers like Stingray.

Now the ‘good news’ here is that attacks (1), (2) and (4) require active involvement by the attacker. This means they have to be after you specifically and — at least in principal — they’re detectable if you know what to look for. (You don’t.) However, the weaknesses in A5/1 are a whole different kettle of fish. They permit decryption of even passively recorded A5/1 GSM calls (in real time, or after the fact) even to an attacker with modest resources.

3G/4G/LTE

A valid response to the points above is to note that GSM is nearly 30 years old. You probably wouldn’t blame today’s Ford execs for the crash performance of a 1982 Ford Escort, and similarly you shouldn’t hold the GSM designers responsible for a 1980s protocol — even if billions of people still rely on it.

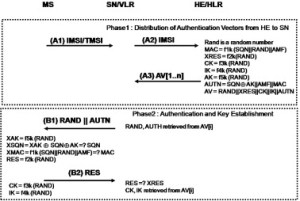

Overview of the 3G AKA protocol. Look familiar?
The great news is that modern phones often support the improved ‘3G’ (e.g., UMTS) or LTE standards. These offer a bundle of improvements that substantially improve security over the original GSM. These can be summed up as follows:
  1. Mutual authentication. The 3G protocols use a new ‘Authentication and Key Agreement‘ (AKA) protocol, which adds mutual authentication to the tower connection. To validate that the phone is speaking to a legitimate tower, the carrier now computes a MAC that the phone can verify before initiating a connection. This prevents many of the uglier protocol attacks that plagued GSM.
  2. Better authentication algorithms. The session keys and authentication tags are still computed using proprietary algorithms — now called f1-f5, f5* — but the algorithms are purportedly much stronger. Since their design is carrier-specific it’s not easy to say exactly how they work. However this 3GPP recommendation indicates that they might be based on a block cipher like AES.
  3. Better encryption. Call encryption in 3G uses a proprietary block cipher called KASUMI. KASUMI is based off of a Mitsubishi proposal called MISTY1, which was heavy customized to make it faster in cellular hardware.

The biggest source of concern for 3G/LTE is that you may not be using it. Most phones are programmed to gracefully ‘fail over’ to GSM when a 3G/4G connection seems unavailable. Active attackers exploit this feature to implement a rollback attack — jamming 3G/4G connections, and thus re-activating all of the GSM attacks described above.

A more subtle concern is the weakness of the KASUMI cipher. Unfortunately KASUMI seems much weaker than the original MISTY1 algorithm — so much weaker that in 2010 Dunkelman, Keller and Shamir were able to implement a related-key attack that recovered a full 128 bit call key in just under two hours!

Now before you panic, you should know that executing this attack requires a substantial amount of data, all of which must all be encrypted under highly unrealistic attack conditions. Still, it’s interesting to note that the same attack fails completely when applied to the original MISTY1 design.

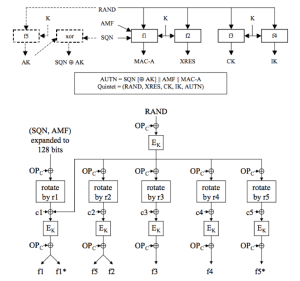

Top: generation of keys (CK, IK) and authentication tags AUTN, XRES using the functions f1-f5. Bottom: one proposed implementation of those functions using a 128-bit block cipher Ek. This could be AES (source).
And yes, it looks complicated to me, too.

What if you have already the keys?

 The encryption flaws above seem pretty significant, and they really are — if you’re a private eavesdropper or a foreign government. For US national security organizations they’re probably beside the point. It seems unlikely that the NSA would have to ‘break’ any crypto at all.

This is because both the GSM and AKA protocols lack an important property known as forward secrecy. What this means is that if I can record an encrypted call, and later obtain the long-term key K for that phone, then I can still reliably decrypt the whole communication — even months or years later. (Protocols such as Diffie-Hellman or ECMQV prevent this.) Worse, for cellular conversations I can do it even if I only have one half (the tower side) of the communication channel.

Unfortunately I don’t think you have to be a conspiracy theorist to suppose that the carriers’ key databases are probably stored somewhere in Ft. Meade. Thus to the truly paranoid: stop talking on cellphones.

In conclusion

Sometimes conspiracy theories can be fun. Sometimes they’re downright creepy.

For me this discussion veers towards the ‘creepy’. Not so much because I think the NSA really is tapping all our cellphones (I suspect they just read our Facebook). Rather, the creepiness is in seeing just how vulnerable our privacy infrastructure is, even to people who are far less capable than the NSA.

As a result, your data isn’t just available to nation states: it’s also potentially available to that goofball neighbor who bought an IMSI-catcher off the Internet. Or to your business competitor. Or even to that one girl who finally got GnuRadio to compile.

We’re rapidly approaching a technological crossroads, one where we need to decide if we’re going to keep trusting others to protect our data — or if we’re going to take charge of it and treat carriers as the dumb and insecure pipes that they are. I suspect that we’re well on our way towards this world — and sadly, so does the FBI. It’ll be interesting to see how things play out.

Notes:

The argument is that recording all local calls in real time is a bigger job than just splitting major trunks or re-routing a few specific targets. It would seem to require significant changes to the US phone infrastructure. This is particularly true at the local office, where you’d need to upgrade and provision thousands of devices to record all calls passing through them. Building this capability is possible, but would require a lot of effort — not to mention the complicity of hundreds (or thousands) of collaborators at the local telcos. And that means a whole lot of people keeping a very big secret. People aren’t so good at that.
