About a year ago I wrote a short post urging Apple to publish the technical details of
iMessage encryption. I’d love tell you that Apple saw my influential crypto blogging and fell all over themselves to produce a spec, but, no. iMessage is the same black box it’s always been.
What’s changed is that suddenly people seem to care. Some of this interest is due to Apple’s (alleged) friendly relationship with the NSA. Some comes from their not-so-friendly relationship with the DEA. Whatever the reason, people want to know which of our data Apple has and who they’re sharing it with.
There are certain categories of information which we do not provide to law enforcement or any other group because we choose not to retain it.
For example, conversations which take place over iMessage and FaceTime are protected by end-to-end encryption so no one but the sender and receiver can see or read them. Apple cannot decrypt that data.
This seems almost too good to be true, which in my experience means it probably is. My view is inspired by something I like to call “Green’s law of applied cryptography”, which holds that applied cryptography mostly sucks. Crypto never offers the unconditional guarantees you want it to, and when it does your users suffer terribly.
And that’s the problem with iMessage: users don’t suffer enough. The service is almost magically easy to use, which means Apple has made tradeoffs — or more accurately, they’ve chosen a particular balance between usability and security. And while there’s nothing wrong with tradeoffs, the particulars of their choices make a big difference when it comes to your privacy. By witholding these details, Apple is preventing its users from taking steps to protect themselves.
The details of this tradeoff are what I’m going to talk about in this post. A post which I swear will be the last post I ever write on iMessage. From here on out it’ll be ciphers and zero knowledge proofs all the way.
Apple backs up iMessages to iCloud
 |

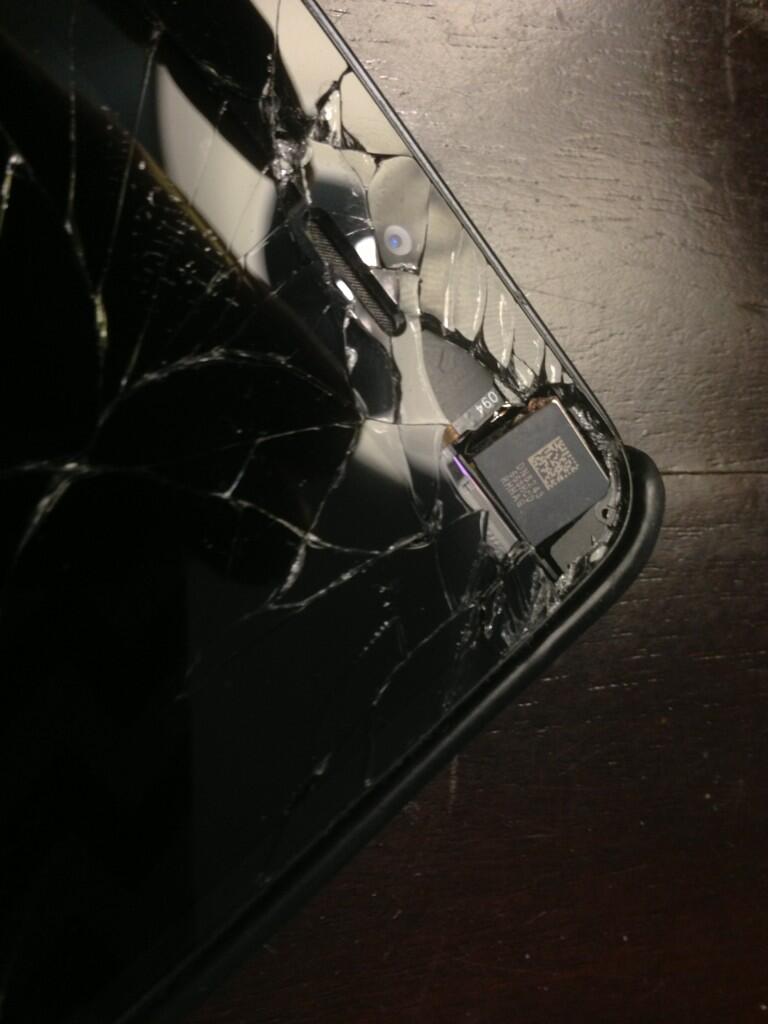

| That’s the super-secret NSA spying chip. |
- iMessage backups are encrypted under a key that ‘never leaves the device‘.
- iMessage backups are encrypted using your password as a key.
Unfortunately neither of these choices really works — and it’s easy to prove it. All you need to do is run the following simple experiment: First, lose your iPhone. Now change your password using Apple’s iForgot service (this requires you to answer some simple security questions or provide a recovery email). Now go to an Apple store and shell out a fortune buying a new phone.
If you can recover your recent iMessages onto a new iPhone — as I was able to do in an Apple store this afternoon — then Apple isn’t protecting your iMessages with your password or with a device key. Too bad. (Update 6/27: Ashkan Soltani also has some much nicer screenshots from a similar test.)
The sad thing is there’s really no crypto to understand here. The simple and obvious point is this: if I could do this experiment, then someone at Apple could have done it too. Possibly at the request of law enforcement. All they need are your iForgot security questions, something that Apple almost certainly does keep.*
Apple distributes iMessage encryption keys
But maybe you don’t use backups. In this case the above won’t apply to you, and Apple clearly says that their messages are end-to-end encrypted. The question you should be asking now is: encrypted to whom?
The problem here is that encryption only works if I have your encryption key. And that means before I can talk to you I need to get hold of it. Apple has a simple solution to this: they operate a directory lookup service that iMessage can use to look up the public key associated with any email address or phone number. This is great, but represents yet another tradeoff: you’re now fundamentally dependent on Apple giving you the right key.
 |
| HTTPS request/response containing a “message identity key” associated with an iPhone phone number (modified). These keys are sent over SSL. |
The concern here is that Apple – or a hacker who compromises Apple’s directory server – might instead deliver their own key. Since you won’t know the difference, you’ll be encrypting to that person rather than to your friend.**
Moreover, iMessage lets you associate multiple public keys with the same account — for example, you can you add a device (such as a Mac) to receive copies of messages sent to your phone. From what I can tell, the iMessage app gives the sender no indication of how many keys have been associated with a given iMessage recipient, nor does it warn them if the recipient suddenly develops new keys.
The practical upshot is that the integrity of iMessage depends on Apple honestly handing out keys. If they cease to be honest (or if somebody compromises the iMessage servers) it may be possible to run a man-in-the-middle attack and silently intercept iMessage data.
Now to some people this is obvious, and to other’s it’s no big deal. All of which is fine. But people should at least understand the strengths and weaknesses of the particular design that Apple has chosen. Armed with that knowledge they can make up their minds how much they want to trust Apple.
Apple can retain metadata
While Apple may encrypt the contents of your communication, their statement doesn’t exactly rule out the possibility they store who you’re talking to. This is the famous meta-data the NSA already sweeps up and (as I’ve said before) it’s almost impossible not to at least collect this information, especially since Apple actually delivers your messages through their servers.
This metadata can be as valuable as the data itself. And while Apple doesn’t retain the content of your messages, their statement says nothing about all that metadata.
Apple doesn’t use Certificate Pinning
As a last – and fairly minor point – iMessage client applications (for iPhone and Mac) communicate with Apple’s directory service using the HTTPS protocol. (Note that this applies to directory lookup messages: the actual iMessages are encrypted separately and travel over XMPP Apple’s push network protocol.)
Using HTTPS is a good thing, and in general it provides strong protections against interception. But it doesn’t protect against all attacks. There’s still a very real possibility that a capable attacker could obtain a forged certificate (possibly by compromising a Certificate Authority) and thus intercept or modify communications with Apple.
This kind of thing isn’t as crazy as it sounds. It happened to hundreds of thousands of Iranian Gmail users, and it’s likely to happen again in the future. The standard solution to this problem is called ‘certificate pinning‘ — this essentially tells the application not to trust unknown certificates. Many apps such as Twitter do this. However based on the testing I did while writing this post, Apple doesn’t.
Conclusion
I don’t write any of this stuff because I dislike Apple. In fact I love their products and would bathe with them if it didn’t (unfortunately) violate the warranty.
But the flipside of my admiration is simple: I rely on these devices and want to know how secure they are. I see absolutely no downside to Apple presenting at least a high-level explanation to experts, even if they keep the low-level details to themselves. This would include the type and nature of the encryption algorithms used, the details of the directory service and the key agreement protocol.
Apple may Think Different, but security rules apply to them too. Sooner or later someone will compromise or just plain reverse-engineer the iMessage system. And then it’ll all come out anyway.
Notes:
* Of course it’s possible that Apple is using your security questions to derive an encryption key. However this seems unlikely. First because it’s likely that Apple has your question/answers on file. But even if they don’t, it’s unlikely that many security answers contain enough entropy to use for encryption. There are only so many makes/models of cars and so many birthdays. Apple’s 2-step authentication may improve things if you use it — but if so Apple isn’t saying.
** In practice it’s not clear if Apple devices encrypt to this key directly or if they engage in an OTR-like key exchange protocol. What is clear is that iMessage does not include a ‘key fingerprint’ or any means for users to verify key authenticity, which means fundamentally you have to trust Apple to guarantee the authenticity of your keys. Moreover iMessage allows you to send messages to offline users. It’s not clear how this would work with OTR.
