Attack of the week: Voice calls in LTE

Attack of the week: Voice calls in LTE

I haven’t written an “attack of the week” post in a while, and it’s been bumming me out. This is not because there’s been a lack of attacks, but mostly because there hasn’t been an attack on something sufficiently widely-used that it can rouse me out of my blogging torpor.

But today brings a beautiful attack called ReVoLTE, on a set of protocols that I particularly love to see get broken: namely, cellular protocols. And specifically, the (voice over) LTE standards. I’m excited about these particular protocols — and this new attack — because it’s so rare to see actual cellular protocols and implementations get broken. This is mostly because these standards are developed in smoke-filled rooms and written up in 12,000 page documents that researchers never have the energy to deal with. Moreover, implementing the attacks requires researchers to mess with gnarly radio protocols.

And so, serious cryptographic vulnerabilities can spread all over the world, presumably only exploited by governments, before a researcher actually takes a look at them. But every now and then there’s an exception, and today’s attack is one of them.

The attack itself is by David Rupprecht, Katharina Kohls, Thorsten Holz, and Christina Pöpper at RUB and NYU Abu Dhabi. It’s a lovely key re-installation attack on a voice protocol that you’re probably already using, assuming you’re one of the older generation who still make phone calls using a cellular phone.

Let’s start with some background.

What is LTE, and what is VoLTE?

The basis for our modern cellular telephony standards began in Europe back in the 1980s, with a standard known as Global System for Mobile. GSM was the first major digital cellular telephony standard, and it introduced a number of revolutionary features such as the use of encryption to protect phone calls. Early GSM was designed primarily for voice communications, although data could be sent over the air at some expense.

As data became more central to cellular communications, the Long Term Evolution (LTE) standards were devised to streamline this type of communication. LTE builds on a group of older standards such as GSM, EDGE and HSPA to make data communication much faster. There’s a lot of branding and misbranding in this area, but the TL;DR is that LTE is a data communications system that serves as a bridge between older packet data protocols and future 5G cellular data technologies.

Of course, history tells us that once you have enough (IP) bandwidth, concepts like “voice” and “data” start to blur together. The same is true with modern cellular protocols. To make this transition smoother, the LTE standards define Voice-over-LTE (VoLTE), which is an IP-based standard for transmitting voice calls directly over the data plane of the LTE system, bypassing the circuit-switched portion of the cellular network entirely. As with standard VoIP calls, VoLTE calls can be terminated by the cellular provider and connected to the normal phone network. Or (as is increasingly common) they can be routed directly from one cellular customer to another, even across providers.

Like standard VoIP, VoLTE is based on two popular IP-based protocols: Session Initiation Protocol (SIP) for call establishment, and Real Time Transport Protocol (which should be called RTTP but is actually called RTP) to actually handle voice data. VoLTE also adds some additional bandwidth optimizations, such as header compression.

Ok, what does this have to do with encryption?

Like GSM before it, LTE has a standard set of cryptographic protocols for encrypting packets while they travel over the air. These are mainly designed to protect your data while it travels between your handset (called the “User Equipment”, or UE) and the cellular tower (or wherever your provider decides to terminate the connection.) This is because cellular providers view outside eavesdroppers as the enemy, not themselves. Obviously.

(However, the fact that VoLTE connections can occur directly between customers on different provider networks does mean that the VoLTE protocol itself has some additional and optional encryption protocols that can happen at higher network layers. These aren’t relevant to the current paper except insofar as they could screw things up. We’ll talk about them briefly further below.)

Historical GSM encryption had many weaknesses: bad ciphers, protocols where only the handset authenticated itself to the tower (meaning an attacker could impersonate a tower, giving rise to the “Stingray“) and so on. LTE fixed many of the obvious bugs, while keeping a lot of the same structure.

Let’s start with the encryption itself. Assuming key establishment has already happened — and we’ll talk about that in just a minute — each data packet is encrypted using a stream cipher mode using some cipher called “EEA” (which in practice can be implemented with things like AES). The encryption mechanism is basically CTR-mode, as shown below:

Basic encryption algorithm for VoLTE packets (source: ReVoLTE paper). EEA is a cipher, “COUNT’ is a 32-bit counter, “BEARER” is a unique session identifier that separates VoLTE connections from normal internet traffic. And “DIRECTION” indicates whether the traffic is going from UE to tower or vice-versa.

Since the encryption algorithm itself (EEA) can be implemented using a strong cipher like AES, it’s unlikely that there’s any direct attack on the cipher itself, as there was back in the GSM days. However, even with a strong cipher, it’s obvious that this encryption scheme is a giant footgun waiting to go off.

CTR mode nonce re-use attacks were a thing when Poison was a thing.

Specifically: the LTE standard uses an (unauthenticated) stream cipher with a mode that will be devastatingly vulnerable should the counter — and other inputs, such as ‘bearer’ and ‘direction’ — ever be re-used. In modern parlance the term for this concept is “nonce re-use attack“, but the potential risks here are not modern. They’re well-known and ancient, going back to the days of hair-metal and even disco.

In fairness, the LTE standards says “don’t re-use these counters, please“. But the LTE standards are also like 7,000 pages long, and anyway, this is like begging toddlers not to play with a gun. Inevitably, they’re going to do that and terrible things will happen. In this case, the discharging gun is a keystream re-use attack in which two different confidential messages get XORed with the same keystream bytes. This is known to be utterly devastating for message confidentiality.

So what’s ReVoLTE?

The ReVoLTE attack paper points out that, indeed, this highly vulnerable encryption construction is in fact, misused by real equipment in the wild. Specifically, the authors analyze actual VoLTE calls made using commercial equipment, and show that they can exploit something called a “key re-installation attack”. (Much credit for the basic observation goes to Raza and Lu, who first pointed out the potential vulnerability. But the ReVoLTE research turns it into a practical attack.)

Let me give a quick overview of the attack here, although you should really read the paper.

You might assume that once LTE sets up a packet data connection, voice-over-LTE is just a question of routing voice packets over that connection alongside all of your other data traffic. In other words, VoLTE would be a concept that exists only above Layer 2. This isn’t precisely the case.

In fact, LTE’s data link layer introduces the concept of a “bearer“. Bearers are separate session identifiers that differentiate various kinds of packet traffic. Normal Internet traffic (your Twitter and Snapchat) goes over one bearer. SIP signalling for VoIP goes over another, and voice traffic packets are handled on a third. I don’t have much insight into the RF and network routing mechanisms of LTE, but I presume this is done because LTE networks want to enable quality of service mechanisms to ensure that these different packet flows are treated with different priority levels: i.e., your crummy TCP connections to Facebook can be prioritized at a lower level than your real-time voice calls.

This isn’t exactly a problem, but it raises an issue. Keys for LTE encryption are derived separately each time a new “bearer” is set up. In principle this should happen afresh each time you make a new phone call. This would result in a different encryption key for each call, thus eliminating the possibility that the same key will be re-used to encrypt two different sets of call packets. Indeed, the LTE standard says something like “you should use a different key each time you set up a new bearer to handle a new phone call.” But that doesn’t mean it happens.

In fact, in real implementations, two different calls that happen in close temporal proximity will end up using the exact same key — despite the fact that new (identically-named) bearers are configured between them. The only practical change that happens between those calls is that the encryption counter will reset back to zero. In the literature, this is sometimes called a key reinstallation attack. One can argue that this is basically an implementation error, although in this case the risks seem largely set up by the standard itself.

In practice, this attack leads to keystream re-use where an attacker can obtain the encrypted packets C_1 = M_1 \oplus KS and C_2 = M_2 \oplus KS, which allows her to compute C_1 \oplus C_2 = M_1 \oplus M_2. Even better, if the attacker knows one of M_1 or M_2, she can immediately recover the other. This gives her a strong incentive to know one of the two plaintexts.

This brings us to the complete and most powerful attack scenario. Consider an attacker who can eavesdrop the radio connection between a target phone and the cellular tower, and who somehow gets “lucky enough” to record two different calls where the second happens immediately subsequent to the other. Now imagine she can somehow can guess the plaintext contents of one of the calls. In this eventuality, our attacker can completely decrypt the first call, using a simple XOR evaluation between the two sets of packets.

And of course, as it happens — luck has nothing to do with it. Since phones are designed to receive calls, an attacker who can eavesdrop that first call will be able to initiate a second call at exactly moment the first call ends. This second call, should it re-use the same encryption key with a counter set back to zero, will enable plaintext recovery. Even better, since our attacker actually controls the data in the second call, she may be able to recover the contents of the first one — pending a whole lot of implementation-specific details all breaking in her favor.

Here’s a picture of the overall attack, taken from the paper:

Attack overview from the ReVoLTE paper. This diagram assumes that two different calls happen using the same key. The attacker controls a passive sniffer (top left) as well as a second handset that they can use to make a second call to the victim phone.

So does the attack actually work?

At one level, this is really the entire question for the ReVoLTE paper. All of the ideas above sound great in theory, but they leave a ton of questions. Such as:

  1. Is it feasible for (academic researchers) to actually sniff VoLTE connections?
  2. Do real LTE systems actually re-install keys?
  3. Can you actually initiate that second call quickly and reliably enough to make a handset and tower re-use a key?
  4. Even if systems do re-install keys, can you actually know the digital plaintext of the second call — given that things like codecs and transcoding may totally change the (bitwise) contents of that second call, even if you have access to the “bits” flowing out of your attacker phone?

The ReVoLTE paper answers several of these questions in the affirmative. The authors are able to use a commercial software-defined radio downlink sniffer called Airscope in order to eavesdrop the downlink side of a VoLTE call. (As is typical with academic research, I expect that simply getting hold of the software and figuring out how to work it took months off some poor graduate students’ lives.)

In order for key re-use to happen, the researchers discovered that a second call has to occur very rapidly after the termination of the first one, but not too rapidly — about ten seconds for the providers they experimented with. Fortunately, it doesn’t really matter if the target picks the call up within that time — the “ringing”, i.e., SIP communication itself causes the provider to re-use the same key.

Many of the gnarliest issues thus revolve around issue (4), obtaining all of the plaintext bits for the attacker-initiated call. This is because a lot of things can happen to your plaintext as it travels from your attacker handset out to the victim’s phone and through the cellular network. These include nastiness such as transcoding of encoded audio data, which makes the audio sound the same but totally changes the binary representation of the audio. LTE networks also use RTP header compression that can substantially change big portions of the RTP packet.

Finally, packets sent by the attacker need to roughly line up with packets that happened in the first phone call. This can be problematic, as silent patches in a phone call result in shorter messages (called comfort noise), which may not overlap well with the original call.

The “real world attack” section of the paper is worth reading for all the details. It addresses many of the above concerns — specifically, the authors find that some codecs are not transcoded, and that roughly 89% of the binary representation of the target call can be recovered, for at least two European providers that the attackers tested.

This is an astonishingly high level of success, and frankly much better than I anticipated when I started the paper.

So what can we do to fix this?

The immediate answer to this question is straightforward: since the vulnerability is a key re-use (re-installation) attack, just fix this attack. Make sure to derive a new key for each phone call, and never allow your packet counter to reset back to zero with the same key. Problem solved!

Or maybe not. Getting this right will require upgrading a lot of equipment, and frankly the fix itself isn’t terribly robust. It would be nice if standards could find a cleaner way to implement their encryption modes that isn’t instantly and catastrophically vulnerable to these nonce-reuse issues.

One possible direction is to use modes of encryption where nonce-misuse doesn’t result in catastrophic outcomes. This might be too expensive for some current hardware, but it’s certainly a direction that designers should be thinking about for the future, particular as the 5G standards are about to take over the world.

This new result also raises a general question about why the same damned attacks keep cropping up in standard after standard, many of which use very similar designs and protocols. At a certain point when you’ve had this same key re-installation issue happen in multiple widely-deployed protocols such as WPA2, maybe it’s time to make your specifications and testing procedures more robust to it? Stop treating implementers as thoughtful partners who will pay attention to your warnings, and treat them as (inadvertent) adversaries who are inevitably going to implement everything incorrectly.

Or alternatively, we can do what the Facebooks and Apples of the world are increasingly doing: make voice call encryption happen at a higher level of the OSI network stack, without relying on cellular equipment manufacturers to get anything right. We could even promote end-to-end encryption of voice calls, as WhatsApp and Signal and FaceTime do, assuming the US government would just stop trying to trip us up. Then (with the exception of some metadata) many of these problems would go away. This solution is particularly pertinent in a world where governments aren’t even sure if they trust their equipment providers.

Alternatively, we could just do what our kids have already done: and just stop answering those annoying voice calls altogether.

Satellite phone encryption is terrible. Anyone surprised?

I adhere to a ‘one post, one topic’ rule on this blog, which means that this weekend I actually have to choose which bad-crypto news I’m going to blog about.

It’s a tough call, but the most interesting story comes via Erik Tews, who recently attended a talk on satellite phone security at Ruhr Universität Bochum. It seems that researchers Benedikt Driessen, Ralf Hund, Carsten Willems, Christof Paar, and Thorsten Holz have reverse-engineered and cryptanalyzed the proprietary ciphers used in the GMR-1 and GMR-2 satellite telephone standards.* If you’ve never heard of these standards, what you need to know is that they power the networks of satphone providers Thuraya and Inmarsat.

The verdict? Encrypting with these ciphers is better than using no encryption. But not necessarily by much.

I guess this shouldn’t come as a big shock — link privacy in mobile telephony has always been kind of a mess. And the GMR ciphers come from the same folks (ETSI) who brought us the A5-series GSM ciphers. If you pay attention to this sort of thing, you probably know that those ciphers have also had some problems. In fact, today it’s possible to download rainbow tables that permit (efficient) decryption of A5/1-encrypted GSM phone calls.

A5/1 is actually the strong member of the GSM family. For export purposes there’s A5/2 — a weakened version with a much shorter key. You don’t hear about people downloading huge A5/2 rainbow tables, mostly because you don’t need them. A5/2 is vulnerable to ciphertext-only attacks that run in a few minutes on a standard PC.

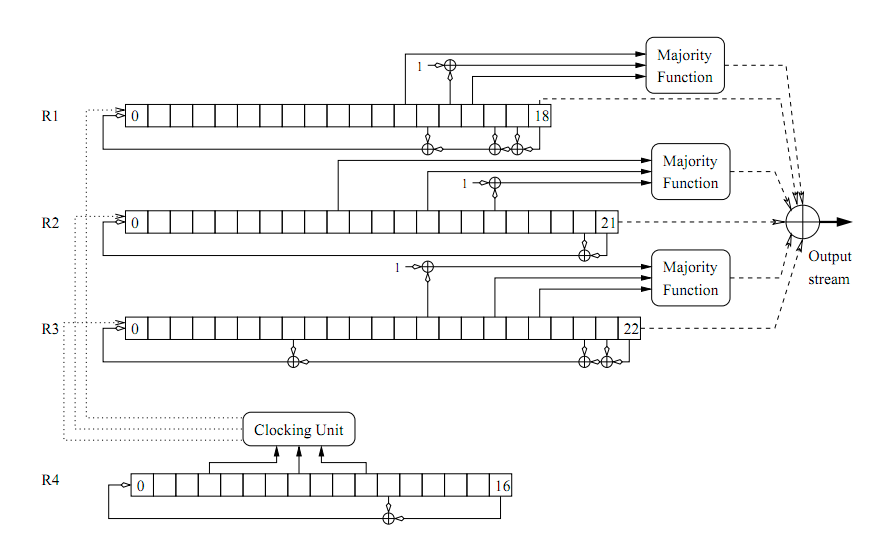

A5/2 GSM cipher. Image: Barkan, Biham, Keller.

ETSI seems to have had A5/2 in mind when developing the GMR-1 and GMR-2 ciphers. Both are custom designs, use short keys, and depend heavily on obscurity of design to make up for any shortcomings (the ciphers are only given to manufacturers who sign an NDA). This secrecy hardly inspires confidence, and worse yet, it doesn’t even do a good job of keeping things secret. The R.U.B. researchers didn’t have to break into Thuraya’s hardware lab; they simply reversed the ciphers from handset firmware updates.**

GMR-1 uses an LFSR-based cipher quite similar to A5/2 (pictured above), which means that it’s vulnerable to a similar class of attacks. Since the underlying plaintext has correctness checks built into it, it’s possible to recover the key using only ciphertext and about 30 minutes on a standard PC. The GMR-2 cipher is a bit more sophisticated (and weirder to boot), but it also appears to have weaknesses.

So why is this a big deal? The obvious answer is that satellite telephone security matters. In many underdeveloped rural areas it’s the primary means of communicating with the outside world. Satphone coverage is also important in war zones, where signal privacy is of more than academic interest.

Moreover, eavesdropping on satellite communications is (in principle) easier than eavesdropping on cellular signals. That’s because satellite ‘spot beams’ cover relatively broad geographic territories (Thuraya’s are 600km on average). So you don’t just have to worry about eavesdropping by your neighbor, you have to worry about eavesdropping by neighboring countries.

The really sad thing is that, unlike cellular networks — which are fundamentally vulnerable to government eavesdropping at the infrastructure level — satellite networks like Thuraya/Inmarsat don’t need local infrastructure. That means their systems really could have provided privacy for individuals persecuted by oppressive regimes. You can argue about whether the manufacturers even had the option to use strong ciphers; it’s quite possible they didn’t. Still, I suspect this will be cold comfort to those who suffer as a direct result of ETSI’s design choices.

Those who are really in the know (news organizations, for example) claim to use additional security measures beyond the built-in link encryption found in GMR-1 and GMR-2. Presumably these days the best way to do that is to run your own voice protocol via the packet data extensions. This practice ought to become more common going forward; now that the GMR-1 code is public, it looks like the barriers to eavesdropping are going to go down quite a bit.

The slides above come from this presentation.


* Update 2/16/2012: I had some initial confusion about the authorship on this work, but the research paper clears it all up: see here.

** And by ‘simply’, I mean ‘with great expertise and difficulty’ — don’t read this as trivializing the effort involved. Obtaining the ciphers meant disassembling code written in a proprietary DSP instruction set, and then searching for a cipher without knowing exactly what it looks like. All in all a pretty significant accomplishment. The point here is that it could have been a lot harder. If you’re going to keep a cipher secret, you shouldn’t release it as software in the first place.
